OPERATION
3. Use handle (B) to move lock rod (A) to
outboard position.

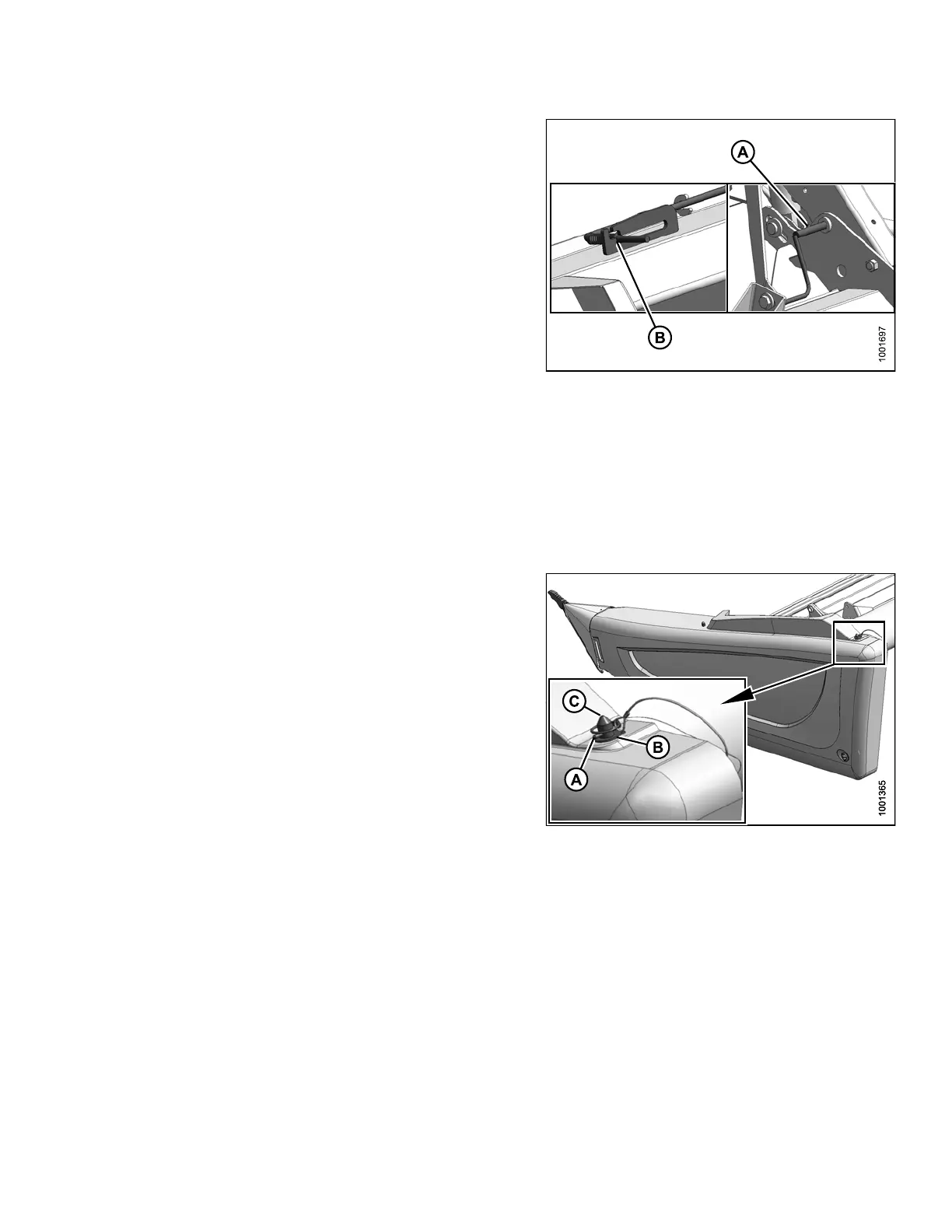

Figure 3.6: Center Arm Safety Prop
3.2.3 Endshields
A hinged, p
olyethylene endshield is fitted on each end of the header.
Opening E
ndshields
To open an endshield, follow these steps:
1. Remove lynch pin (A) and tool (B) from pin (C) at top
rear of endshield.
Figure 3.7: Left-Hand Endshield
147695 33 Revision A
