HEADER ATTAC HMENT/D ETACH ME NT
4.5 New Holland Combines
4.5.1 Attaching Header to New Holland CR/CX Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
To attach a header to a New Holland combine, complete the following steps:
1. Ensure handle (A) is positioned so that hooks (B) can
engage adapter.

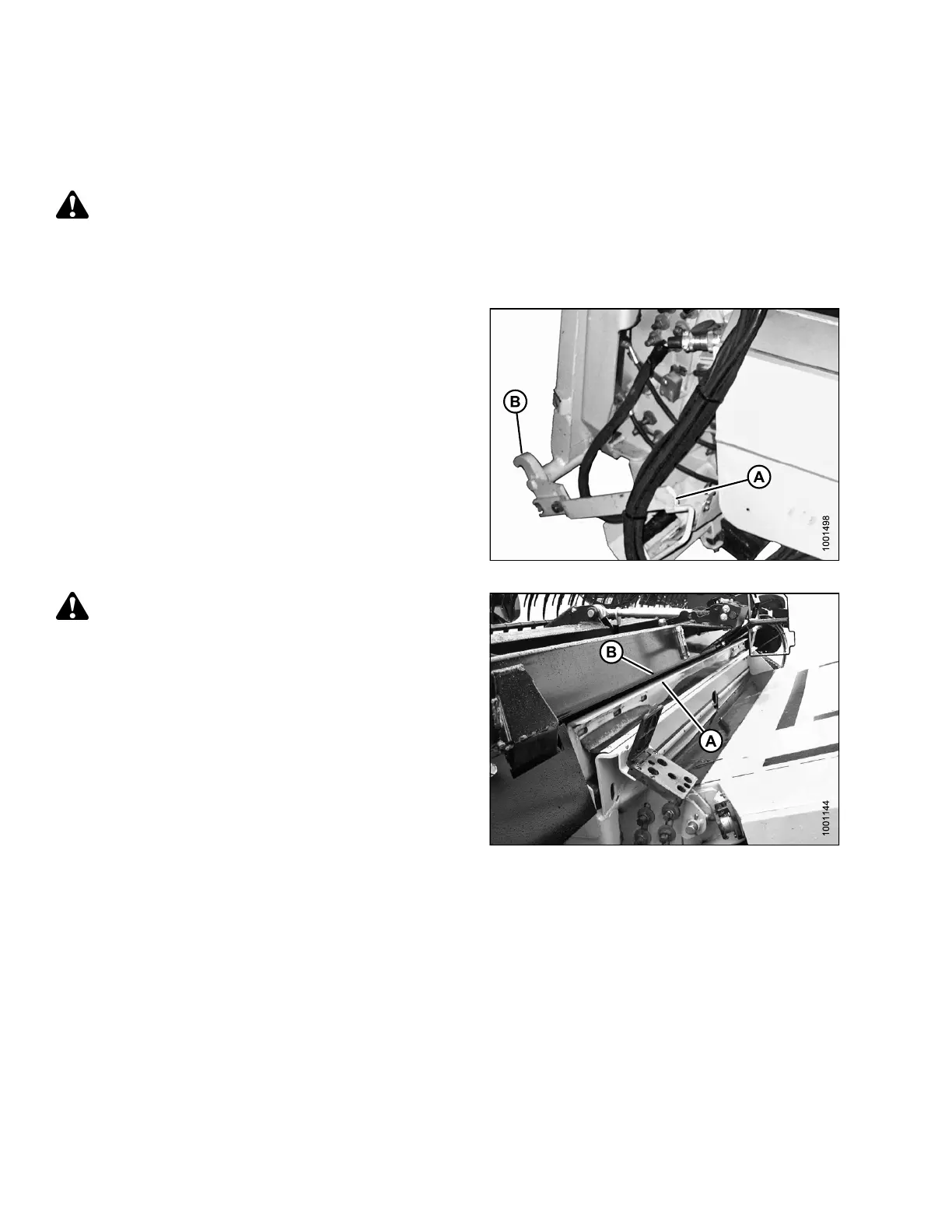

Figure 4.55: Feeder House Locks
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engi
ne and slowly drive combine up to adapter
until feed
er house saddle (A) is directly under the
adapter t
op cross member (B).
3. Raise fe e
der house to lift header ensuring feeder
saddle is
properly engaged in adapter frame.
4. Stop engi
ne and remove key from ignition.
Figure 4.56: Header on Combine
147695
2
22
Revision A
