MAINTENANCE AND SERVICING
8. Measure clearance (X) between points (Y) and (Z) at
ends of each reel (A), and at flex locations (B).
NOTE:
The reel has been adjusted at the factory to
provide more clearance at the center of the reel
than at the ends (‘frown’) to compensate for
reel flexing.
9. Check all possible points of contact b et ween points (Y)
and (Z). Depending on reel fore-aft position, minimum
clearance can occur at guard tine, hold-down,
or cutterbar.

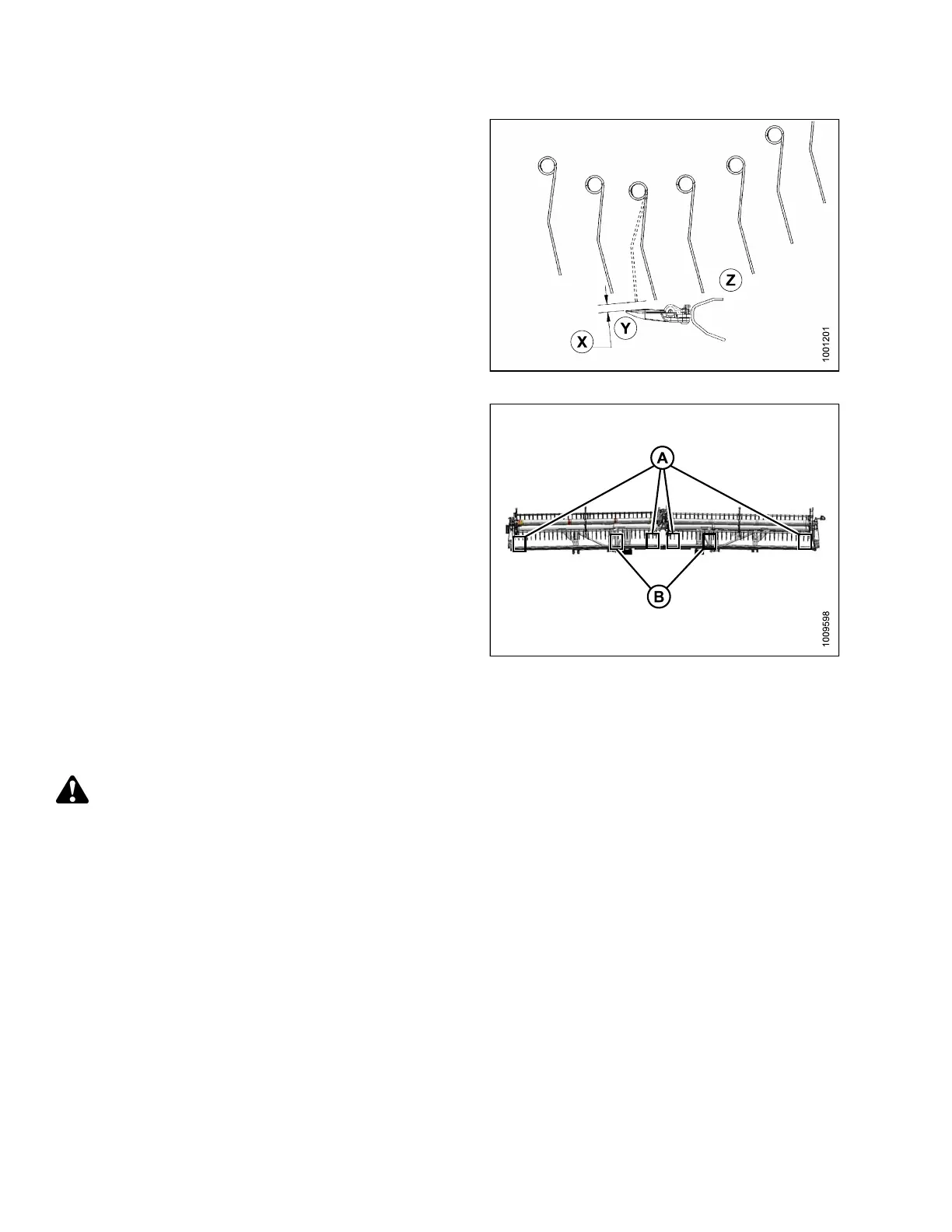

Figure 5.194: Clearance
Figure 5.195: Measurement Locations
10. If nece
ssary, refer to Adjusting Reel Clearance, page
352 for adj
ustment procedure.
Adjusting Reel Clearance
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.
147695 352 Revision A
