SAFETY

1.7 Safety Decal Locations

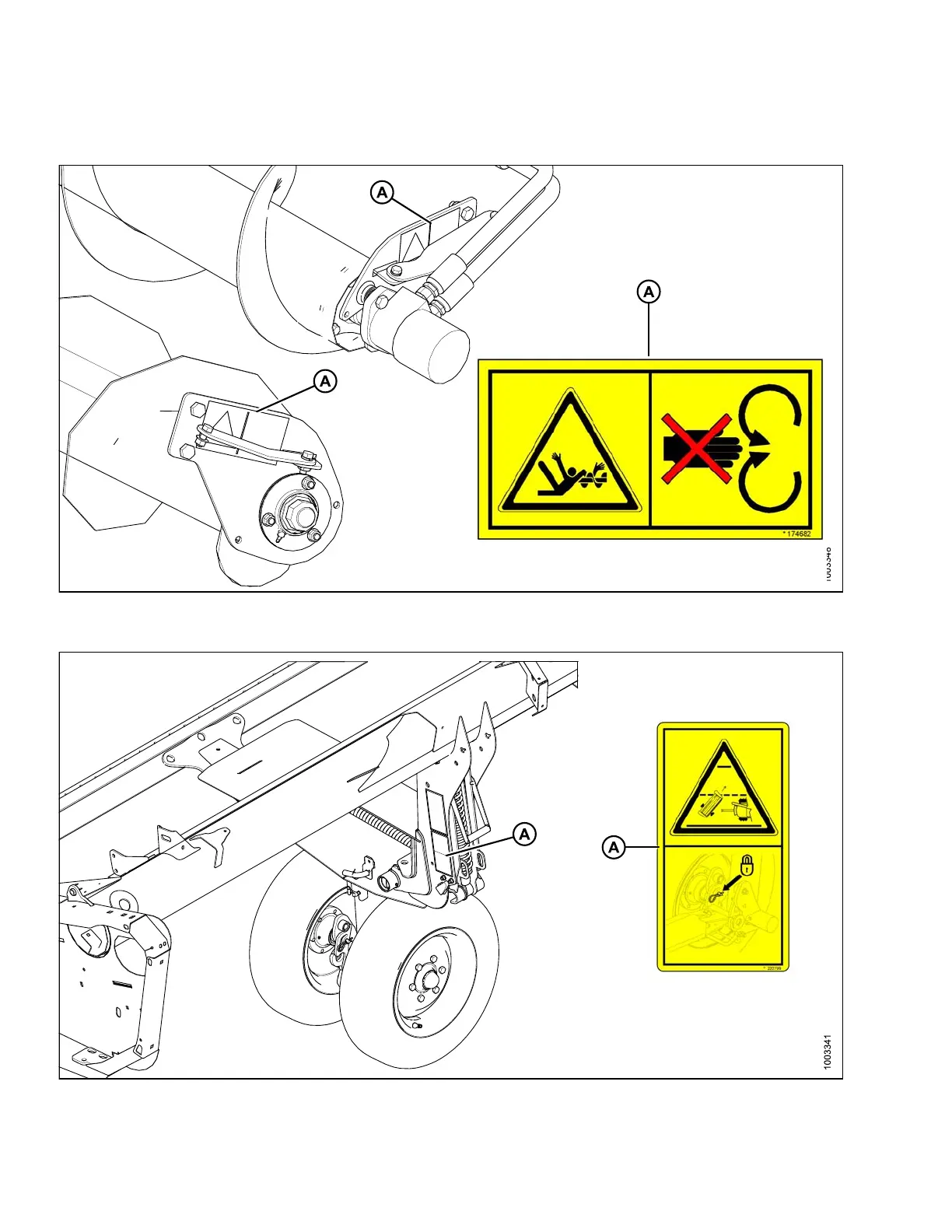

Figure 1

.15: Upper Cross Auger

A - MD #174682

Figure 1.16: Slow Speed Transport

A-M

D #220799

147695 8 Revision A
