MAINTENANCE AND SERVICING
Installing Steel Tines
WARNING
To avoid bodily injury from fall o f raised reel, always engage reel safety props before going under raised
reel for any reason.
IMPORTANT:
Ensure tine tube is supported at all times to prevent damage to the tube or other components.
1. Slide new tines and reel arm (A) onto end of tube.
2. Install tine tube bushings. Refer to 5.13.5 Tine Tube
Bushings, page 358.
3. Attach tines to tine bar w ith bolts and nuts (B).

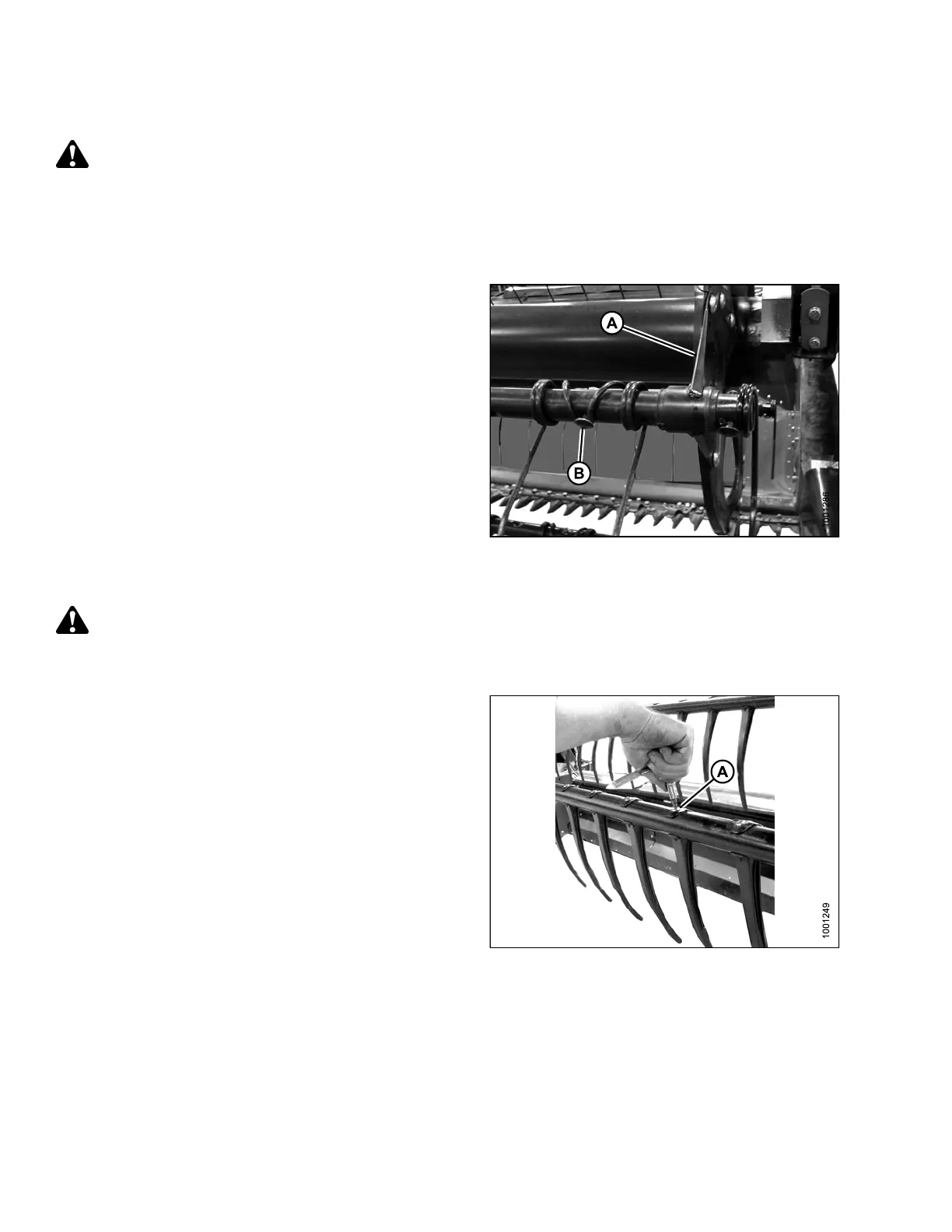

Figure 5.202: Tine Tube
Removing Plastic Fingers
WARNING
To avoid bodily injury from fall o f raised reel, always engage reel safety props before going under raised
reel for any reason.
1. Remove scr
ew (A) with a Torx
®
Plus 27 IP
socket wre
nch.
Figure 5.203: Plastic Fingers
147695 356 Revision A
