MacDon FFT FlexDraper FD75 - Replacing Adapter Feed Draper Idler Roller Bearing

MAINTENANCE AN D SERVICING
5. Remove draper connector straps (A).
6. Open the feed draper.

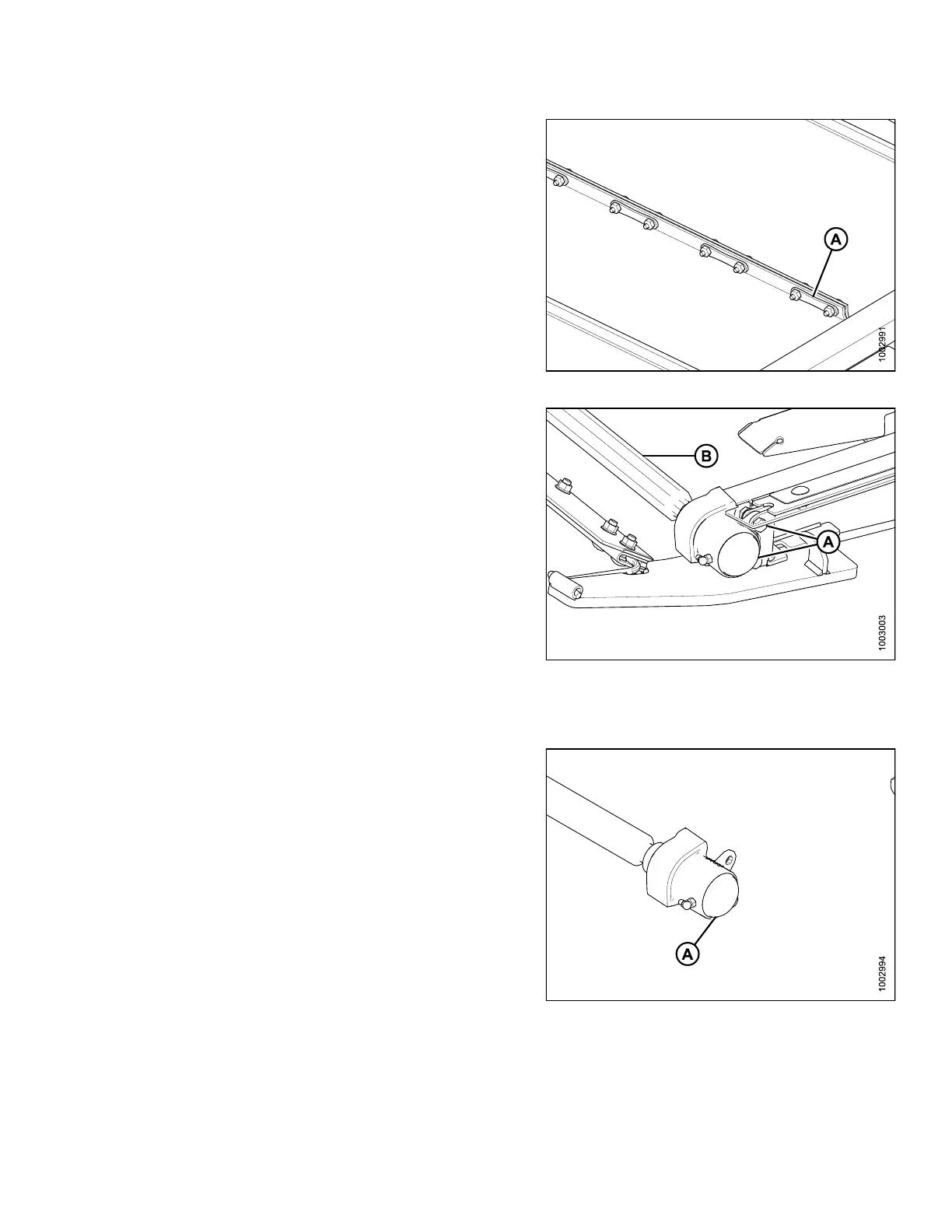

Figure 5.143: Draper C onnector
7. Remove two bolts (A) at both ends of the idler roller.
8. Remove the id ler ro ller a sse mbly (B).
Figure 5.144: Idler Roller
Replacing Adapter Feed Draper Idler Roller Bearing
1. Remove
dust cap (A).
Figure 5.145: Idler Roller
