MAINTENANCE AND SERVICING
2. Remove nu t (A).
3. Using a ha mmer, tap the bearing assembly (B) until it
slides off the shaft.

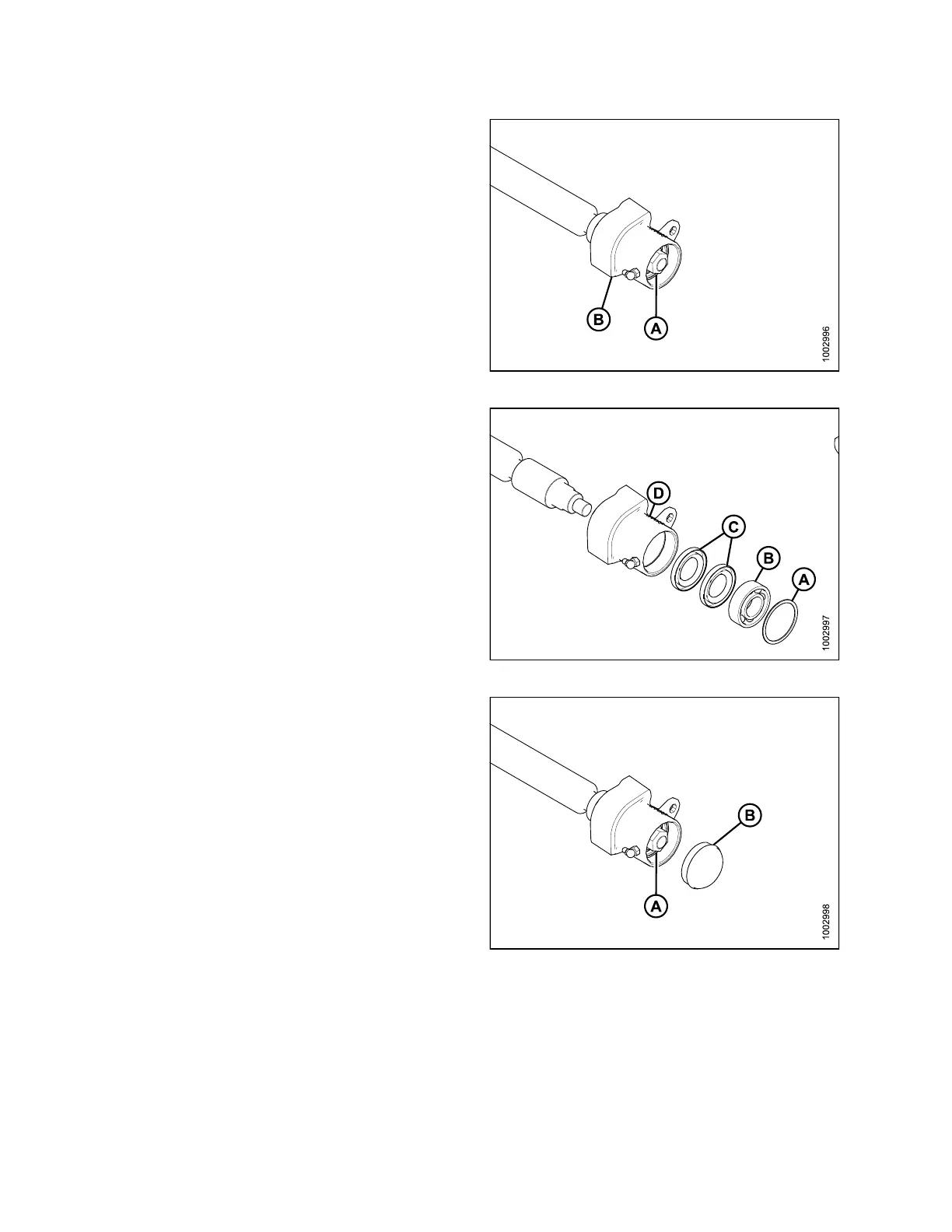

Figure 5.146: Idler Roller
4. Secure the housing (D) and remove the internal
retaining ring (A), bearing (B), and two seals (C).
5. Install seals (C) into housing (D).
NOTE:
Flat side of seal should be facing inboard.
6. Brush sha
ft with oil. Carefully rotate th e housing (D)
with seal
s(C)ontotheshaftbyhandtoprevent
seal dama
ge.
7. Install
bearing (B).
8. Install
retaining ring (A).
Figure 5.147: Bearing Assembly
9. Install nut (A) to secure the bearing assembly to
the sha ft.
10. Install the dust cap (B).
11. Pump grease into bearing assembly.
Figure 5.148: Idler Roller
147695 330 Revision A
