4.2 Case IH Combines
4.2.1 Attaching Header to Case IH Combine
To attach the FD75 FlexDraper
®
header and adapter to a Case IH combine, complete the following steps:
1. Ensure handle (A) is positioned so that hooks (B) can
engage adapter.

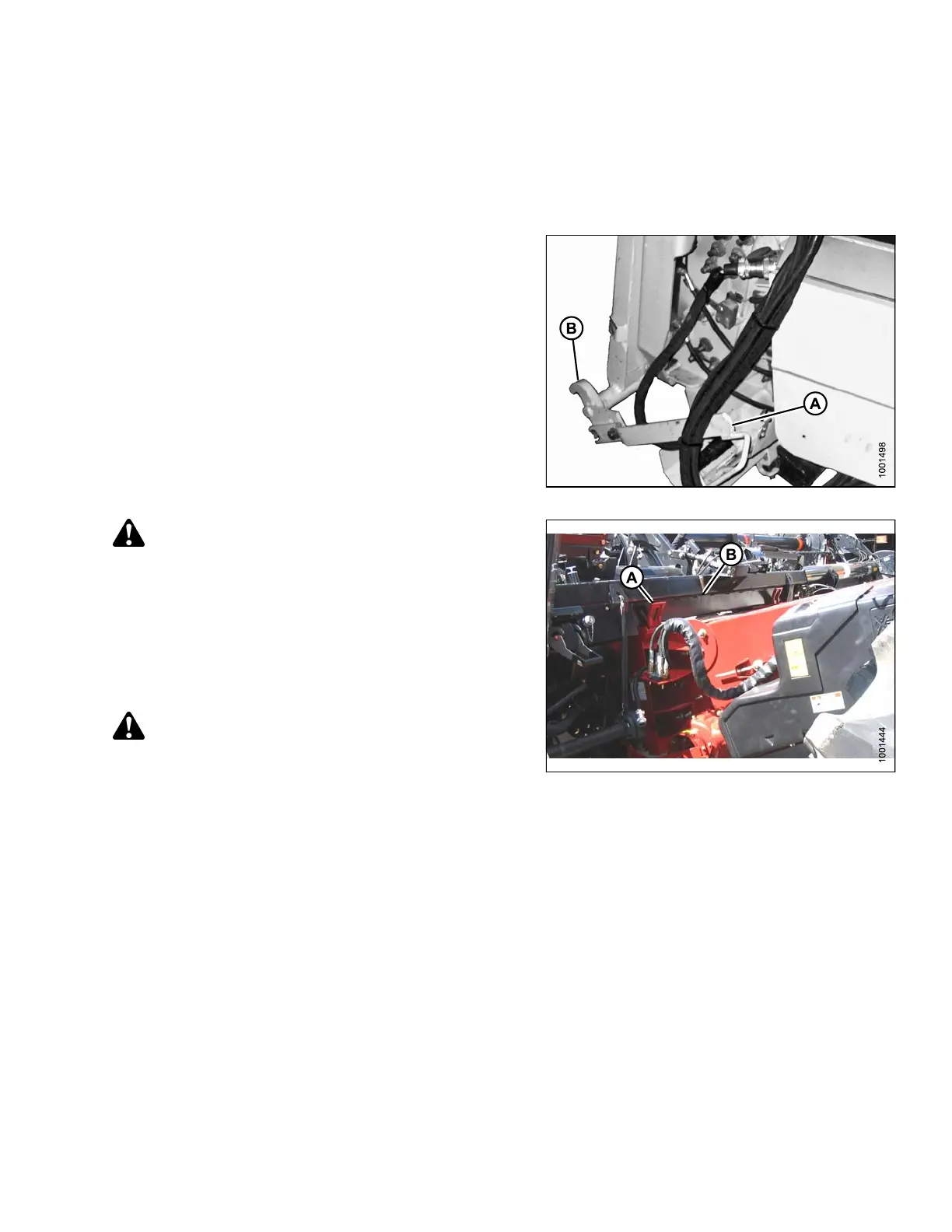

Figure 4.
1: Feeder House Locks
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine and slowly drive combine up to header
until feeder house saddle (A) is directly under the
adapter top cross member (B).
3. Raise feeder house slightly to lift header ensuring
feeder saddle is properly engaged in adapter frame.
DANGER
To avoid bodily injury or death from unexpected
start-up of machine, always stop engine and remove
key from ignition before leaving operator’s seat for
any reason.
4. Stop engine and remove key from ignition.
Figure 4.2: Combine and Adapter
147695 199 Revision A
