OPERATION
Removing Crop Divider Rods
To remove divider rods, follow these steps:
1. Loosen bolt (B) and remove rod (A).

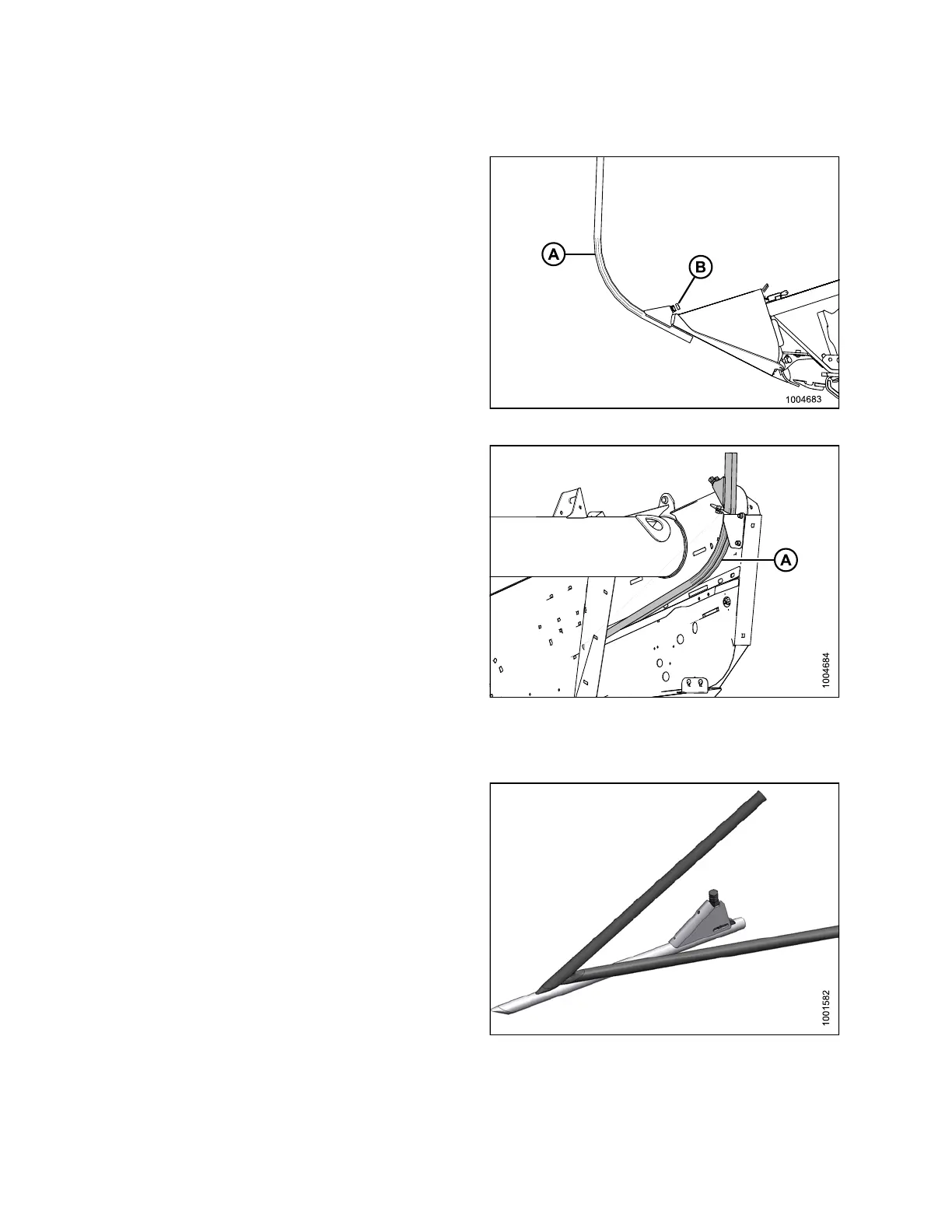

Figure 3.90: Crop Divider Rod
2. Store both rods on the inboard side of the
right endsheet.
Figure 3.91: Stored Divider Rod
Rice Dividers
Optional special rice dividers can be installed and used
when required. R ef er to 6.3.3 R ice Divider Rods, page 412.
The installation and removal procedures are the same as
for the standard crop dividers.
Fig
ure 3.92: Divider Rod for Rice
147695 88 Revision A
