MacDon FFT FlexDraper FD75 - O-Ring Boss (ORB) Hydraulic Fittings (Non-Adjustable)

REFERENCE
8.1.6 O-Rin g B
oss (ORB) Hydraulic Fittings (Non-Adjustable)
1. Inspec t O-ring (A) and sea t (B) for d irt or
obvious defects.
2. Check that O-ring (A) is NOT on the threads and adjust
if necessary.
3. Apply hydraulic system oil to the O-ring.
4. Install fitting (C) into port until fittingishandtight.
5. Torque fitting (C) acco rdin g to the values in
Table 8.12 O-Ring Boss (ORB) Hydraulic F it tin gs
(Non-Adjustable), page 442.
6. Check the final condition of the fitting.

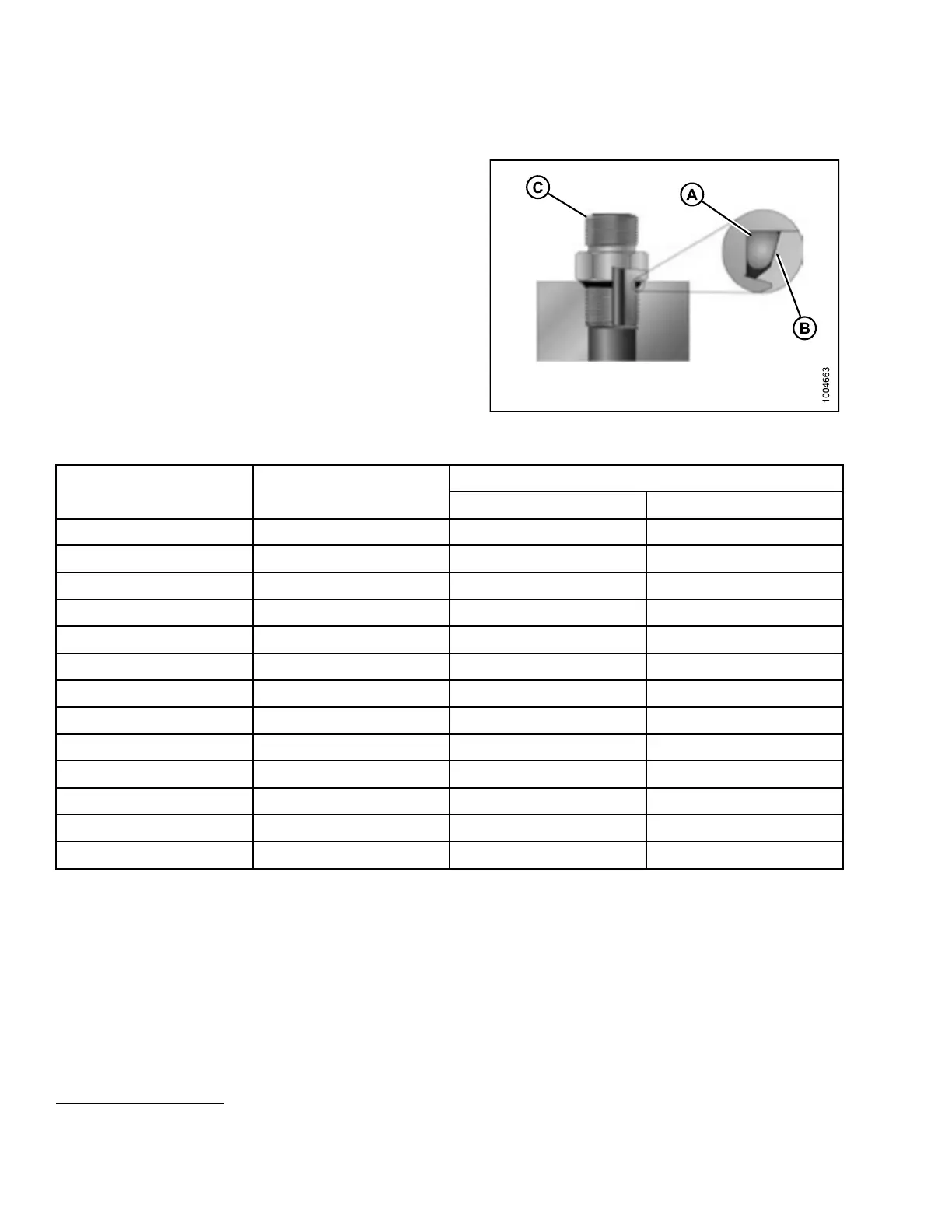

Figure 8.13: Hydraulic Fitting
Table 8.12 O-Ring Boss (ORB) Hydraulic Fittings (No n-Adjusta bl e)
Torque Value
20
SAE Dash Size Thread Size (in.)
ft·lbf (*i n·lbf) N·m
-2 5/16–24 *53–62 6–7
-3 3/8–24 *106–115 12–13
-4 7/16–20 14–15 19–21
-5 1/2–20 15–24 21–33
-6 9/16–18 19–21 26–29
-8 3/4–16 34–37 46–50
-10 7/8–
14
55–6
0
75–8
2
-12 1-1/16–12 88–97 120–132
-14 1-3/8–12 113–124 153–168
-1
6
1-
5/16–12
13
0–142
17
6–193
-20 1-5/8–12 163–179 221–243
-24 1-7/8–12 199–220 270–298
-32 2-1/2–12 245–269 332–365
20. Torque values shown are based on lubricated connections as in reassembly.
147695
4
42
Revision A
