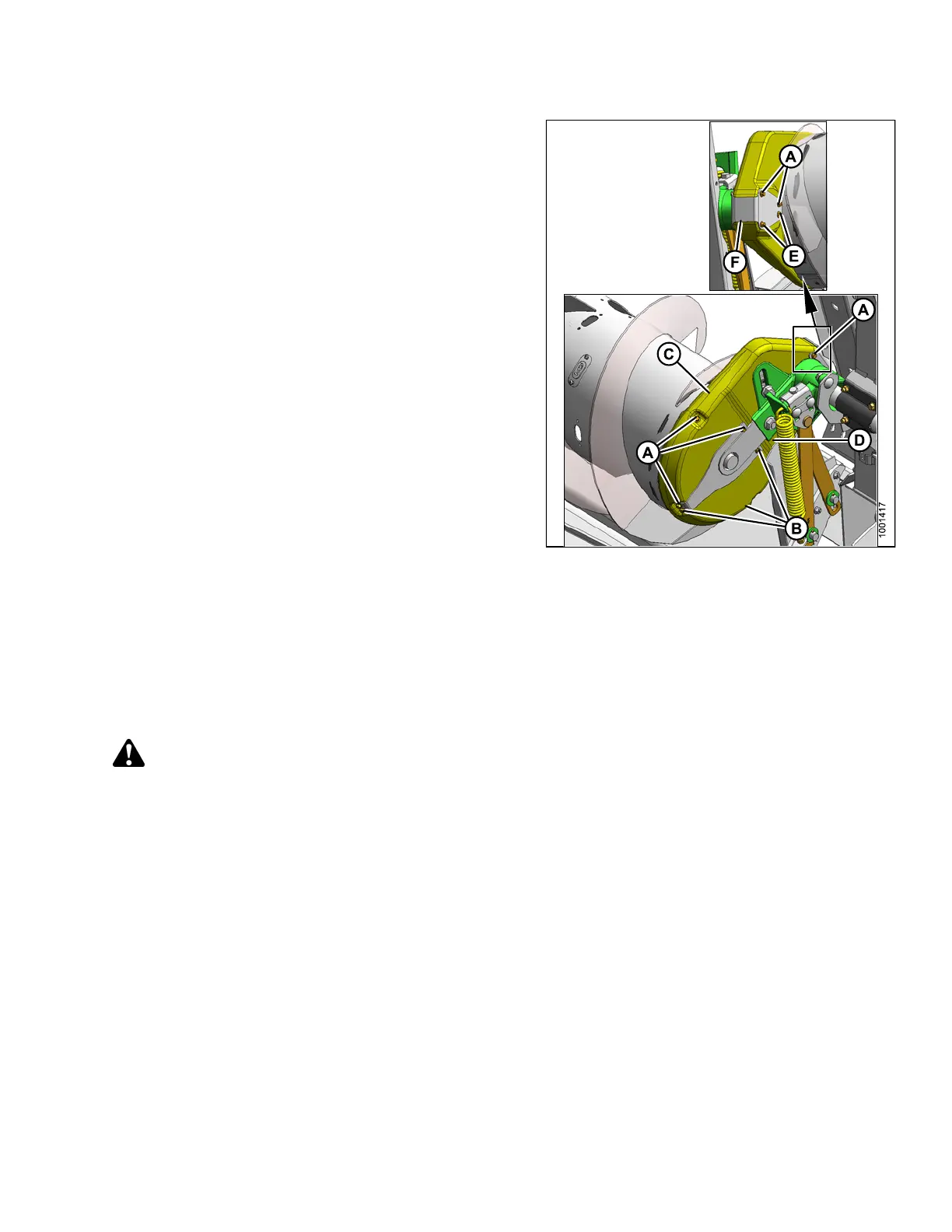

10. Reinstall covers (C) and (D). Engage inboard lip of
cover into auger tube and rotate cover back to engage
rear support.
11. Install cover retainer (F).
12. Replace and tighten bolts (A), (B), and (E).
Figure 5.
66: Auger Drive
5.7.5 Au
ger Tines
The CA25 auger uses retracting tines to feed the crop into the combine feeder house. Some conditions may
require the removal or addition of tines for optimal feeding of the crop. Tines that become worn or damaged
should be replaced.
Removing Feed Auger Tines
DANGER
To avoid bodily injury or death from unexpected start-up of m achine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Raise reel, shutdown combine and remove key from ignition.
2. Engage reel safety props.
