OPERATION

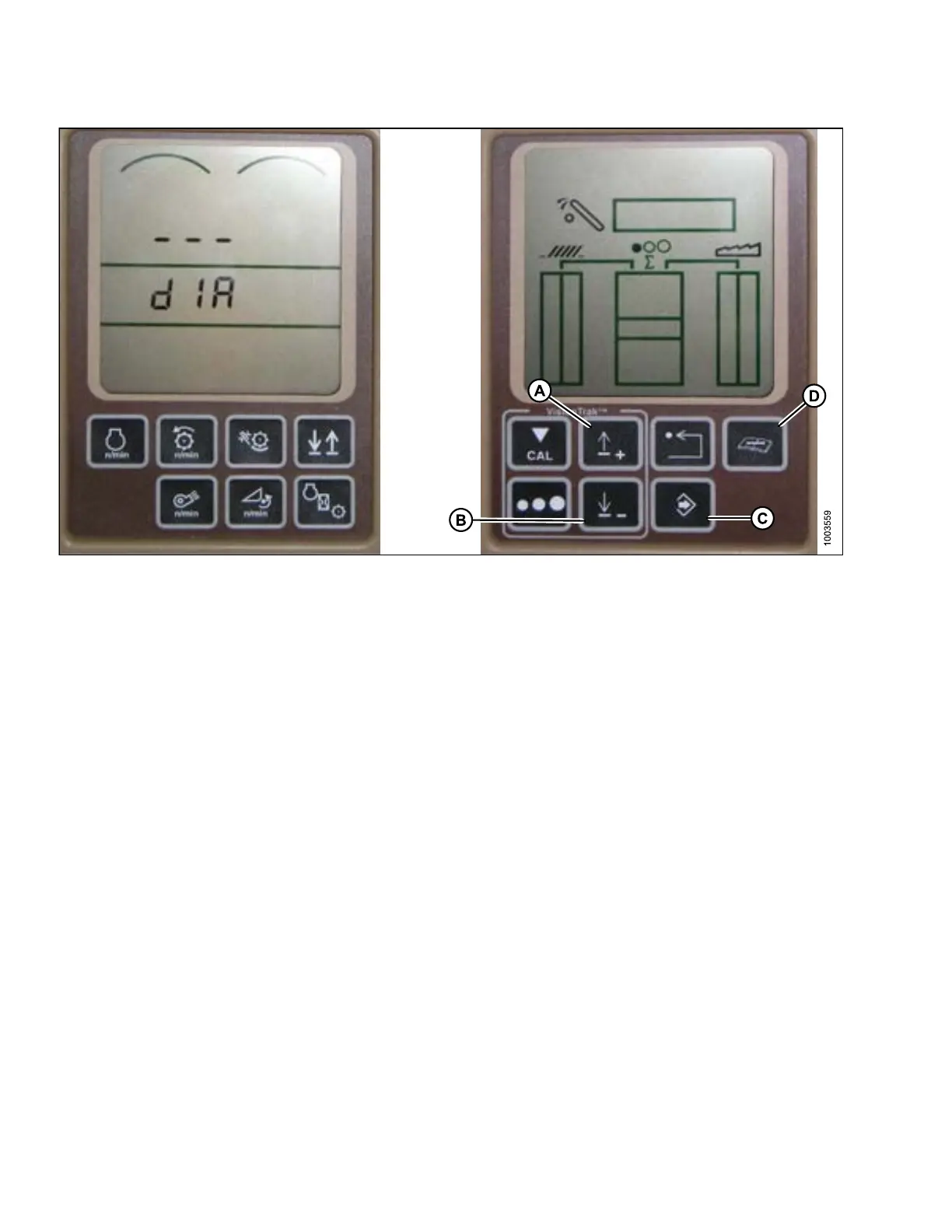

Figure 3.175: Combine HHS Monitor
4. Adjust the vo ltage limits (refer to Adju stin g Voltage Limits, p age 93) if the sensor voltage is not within the low
and high limits or if the range between the low and high limits is insufficient ( refer t o Table 3.10 Combine Voltage
Limits, page 91).
Calibrating the Auto Header Height Control (John Deere 60 S eries)
For bes
t performance of the Auto Header Height Control (AHHC), perform these procedures with the center-link
set to D
. When setup and calibration are complete, adjust the center-link back to desired header angle. Refer to
3.7.3
Header Angle, page 66.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to
the combine operator’s manual for updates.
1. Ensure center-link is set to D.
2. Rest header on down stops, and unlock adapter float.
3. Put wings in locked position.
4. Start the combine.
