MacDon FFT FlexDraper FD75 - Linkage Covers; Removing Linkage Covers

OPERATION
3.2.4 Linkage
Covers
Plastic covers that are attached to the header frame protect the header wing balance mechanism from debris
and weather.
Removing Linkage Covers
To remove a linkage cover, follow these steps:
1. Remove screw (A) and lift outboard end of cover (B).

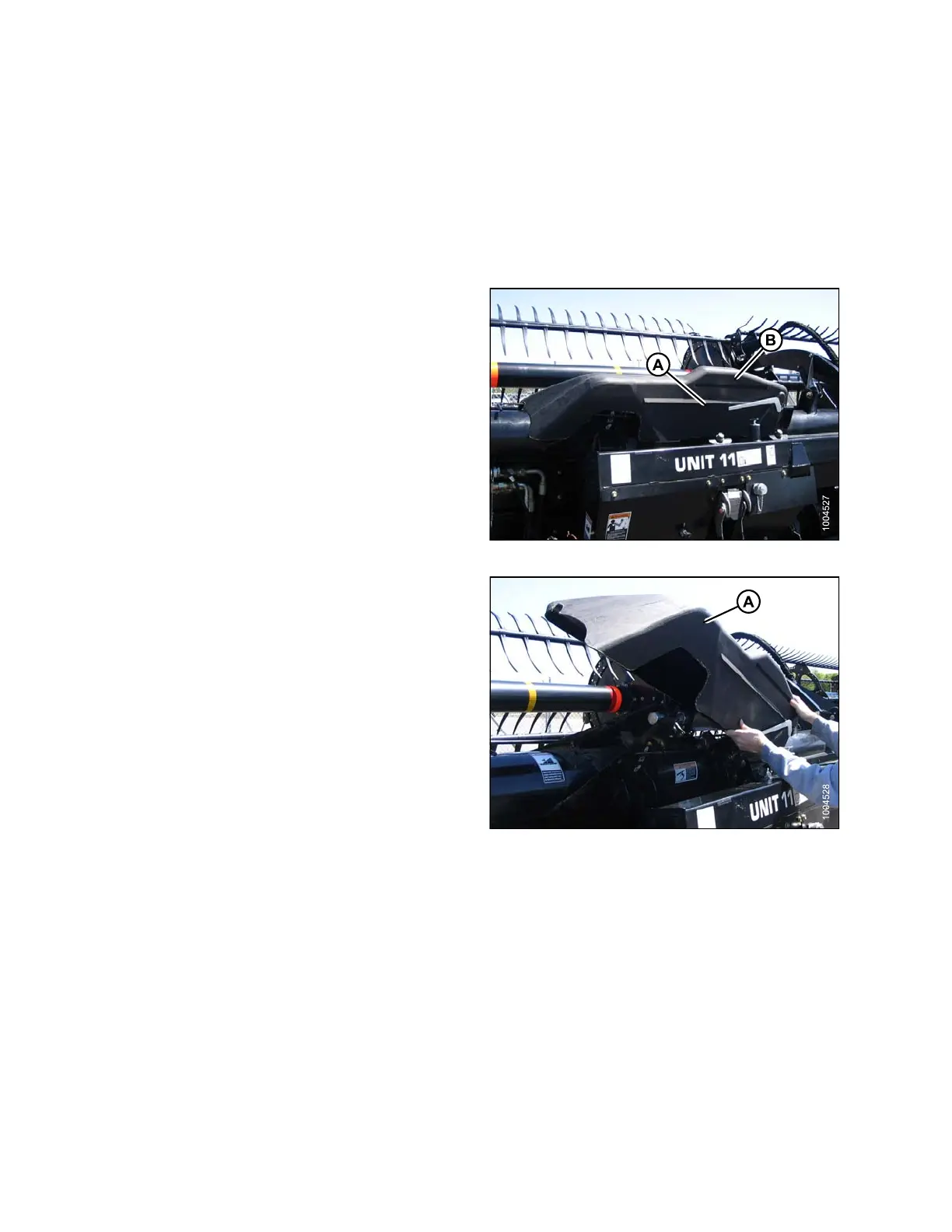

Figure 3
.18: Linkage Cover
2. Rotate cover (A) upward until inboard end can be
lifted off.
Figur
e3.19:LinkageCover
147695 38 Revision A
