MAINTENANCE AN D SERVICING
Installing Adapter F eed Draper Idler Roller

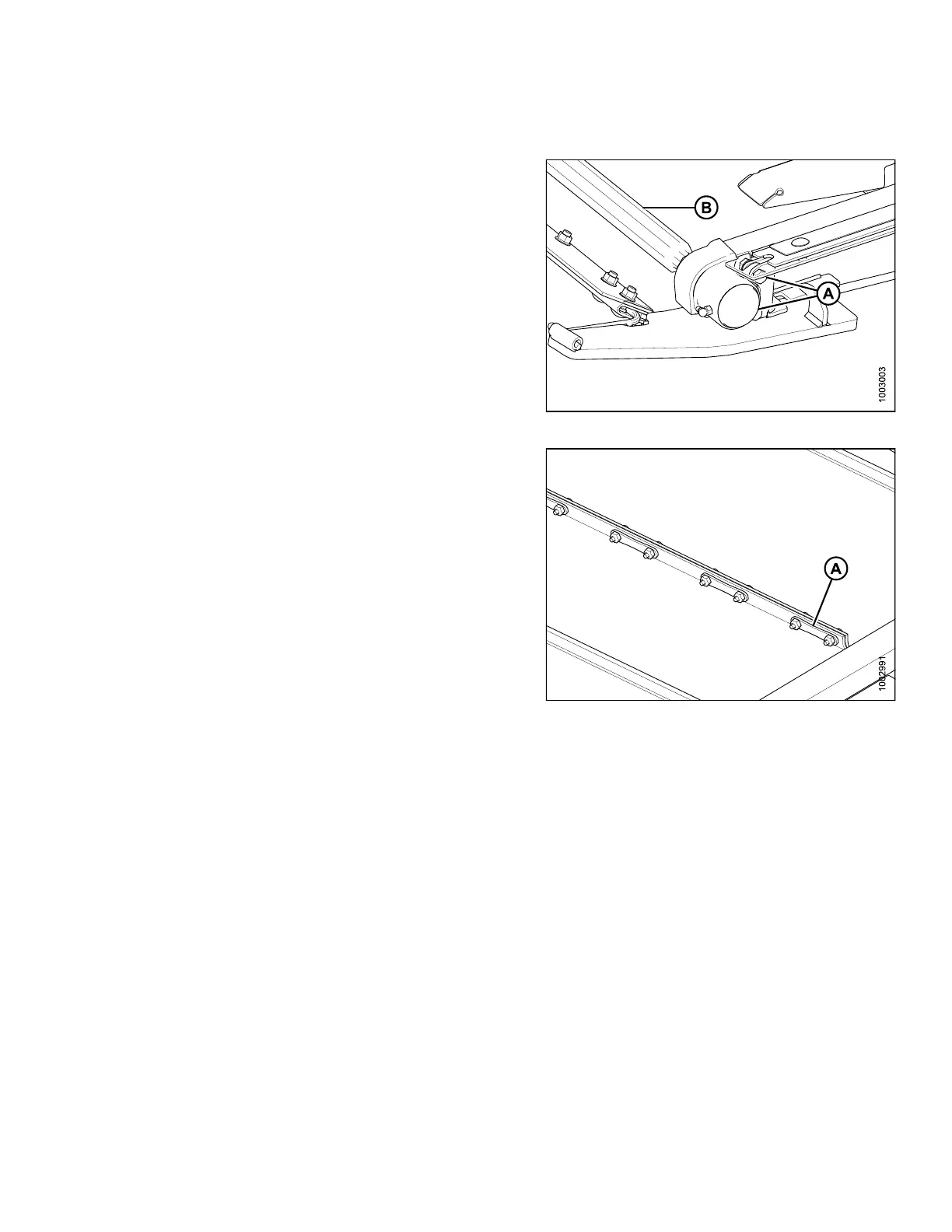

1. Position the idler roller assembly (B) in adapter deck.
2. Install two bolts (A) at both ends of the idler roller.
Figure 5.1
49: Idler Roller
3. Close the feed draper and connect with connector
straps (A), bolts , and nuts.
4. Tension the feed draper. Refer to 5.10.2 Adjusting
Feed Draper Tension, page 323.
5. Attach the header to the adapter. Refer to 4.7.2
Attaching Header to Adapter and Combine, page 245.
Figure 5
.150: Draper Connector
147695 331 Revision A
