MAINTENANCE AND SERVICING
5. Lift endshield off supports .

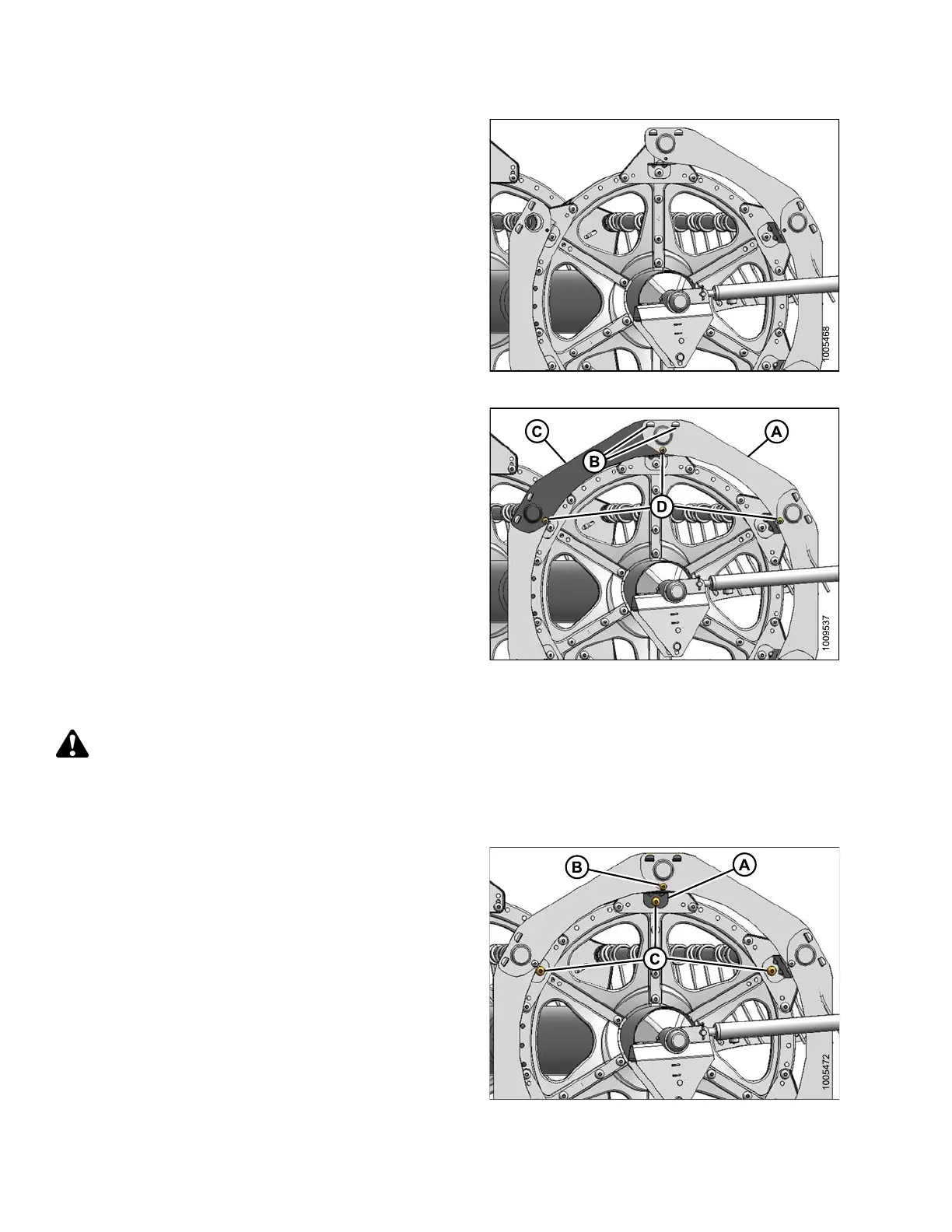

Figure 5.238: Reel Endshields
6. Move endshield (A) away from support (B), and place
new endshield (C) onto supports.
7. Reattach end o f endshield (A) to support (B).
8. Reinstall bolts (D).
9. Tighten all hardware.
Figure 5.239: Reel Endshields
Replacing Support
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
1. Lower header and reel, and shut down engine. R emove key from ignition.
2. Manually rotate reel for access to endshield support (A)
to be replaced.
3. Remove bolt (B) from support (A).
4. Remove bolts (C) from support (A) and two
adjacent supp orts.
Figure 5.240: Endshield Supports
147695 370 Revision A
