MAINTENANCE AND SERVICING
5.14 Reel Drive
The reel is hydraulically driven through a chain case that is attached to the right end on a single reel header, and
between the reels on a double-reel header.
5.14.1 Replacing Reel Drive Sprocket
For Case IH an
d New Holland combine models, the combine needs to be configured for reel sprocket size to optimize
theautoreel
to ground speed control. Fo r more informat ion, refer to combine service manual.
Removing Dr
ive Cover
1. Remove the six bolts (B) that secure the upper
cover (A) to the reel drive and to the lower cover (C).
NOTE:
The lower cover (C) may also be removed by
taking off the three bolts (D).

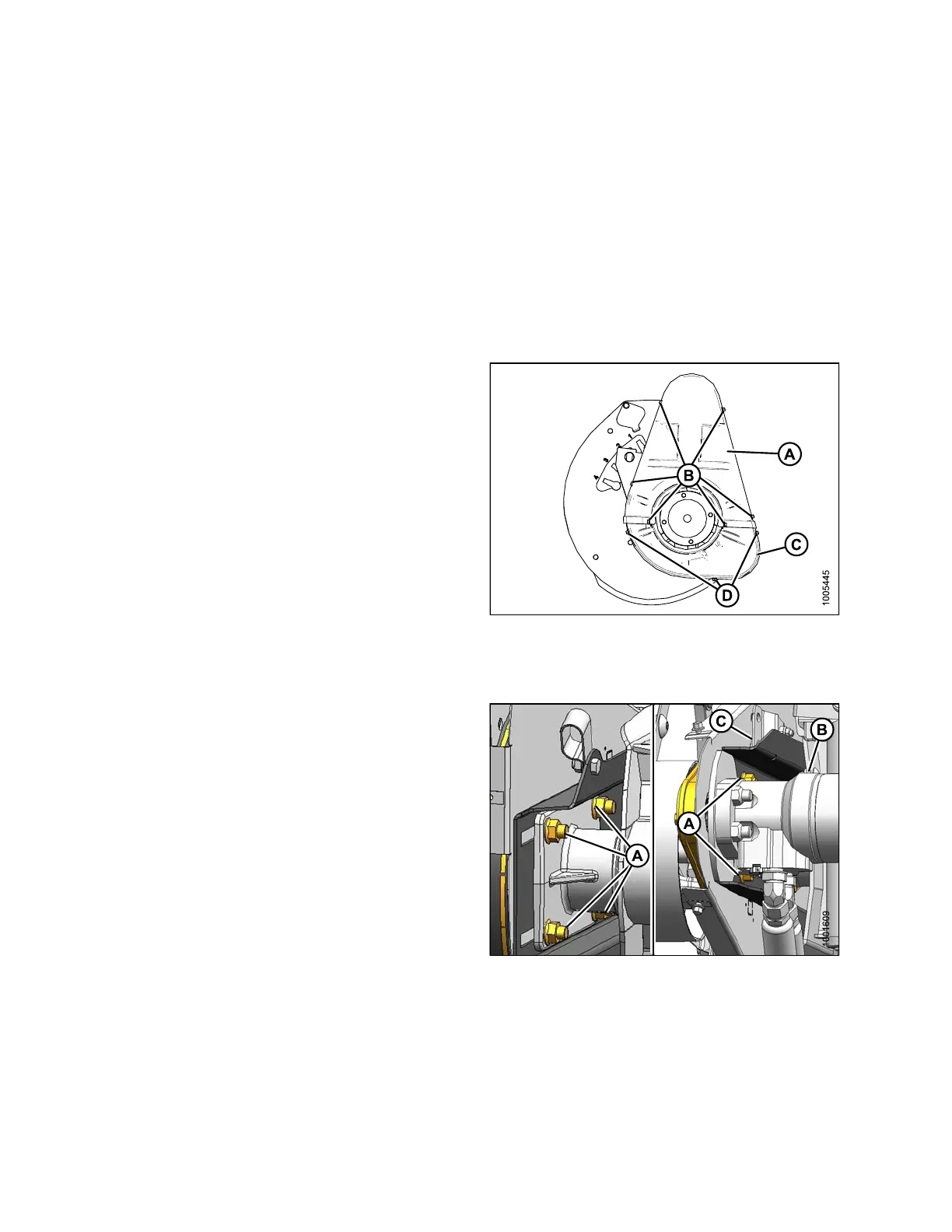

Figure 5.242: Drive Cover
Loosening Drive Chain
1. Loosen
nuts (A). Slide motor (B) and motor mount (C)
down to
wards reel shaft.
Figure 5.243: Reel Drive
147695 372 Revision A
