OPERATION
Installing Linkage Co vers

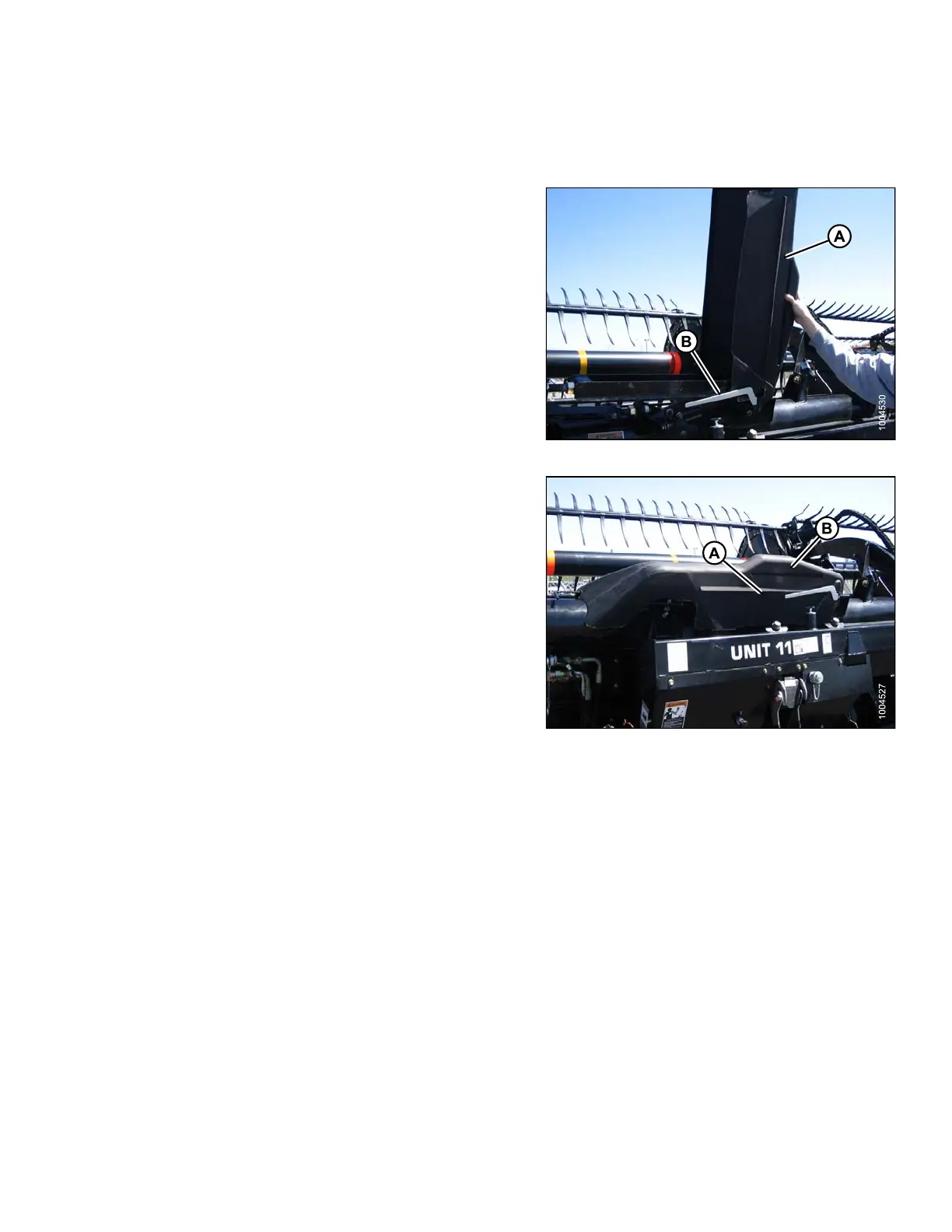

To install a link age cover, follow these steps:
1. Position inboard end of cover (A) over linkage and
behind indicator bar (B).
2. Lower cover until secure and against header tube.
Figure 3.2
0: Linkage C over
3. Install screw (A) to hold cover (B) in place.
Figure
3.21: Linkage Cover
147695 39 Revision A
