OPERATION
7. Lift wheel assembly to desired height and slide
linkage (A) into appropriate slot in vertical support.
8. Push down on handle (B) to lock.

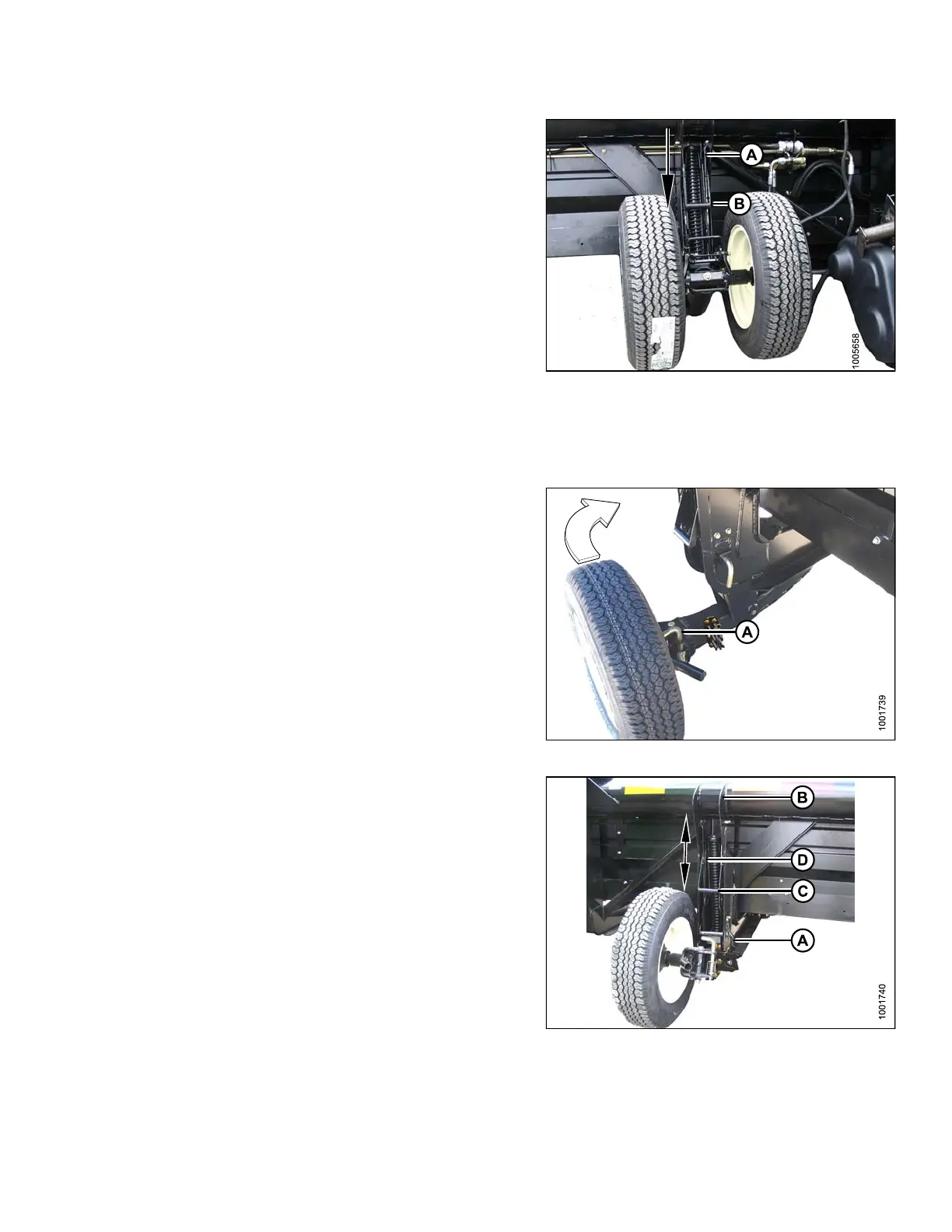

Figure 3.276: Front (Left) Wheels
Moving Rear (Right) Wheels into Field Position
To move the
rear (right) transport wheels into field pos ition, follow th ese steps:
1. Pull pin (
A) on the left-hand wheel behind the header.
Swivel wh
eel clockwise and lock with pin (A).
Figure 3.277: Left Rear Wheel
2. Remove
pin (A) and store at (B).
3. Pull h
andle (C) up to release.
4. Lift w
heel to desired height and engage support
chann
el into slot (D) in vertical support.
5. Push d
own on handle (C) to lock.
Figure 3.278: Left Rear Wheel
147695 185 Revision A
