OPERATION

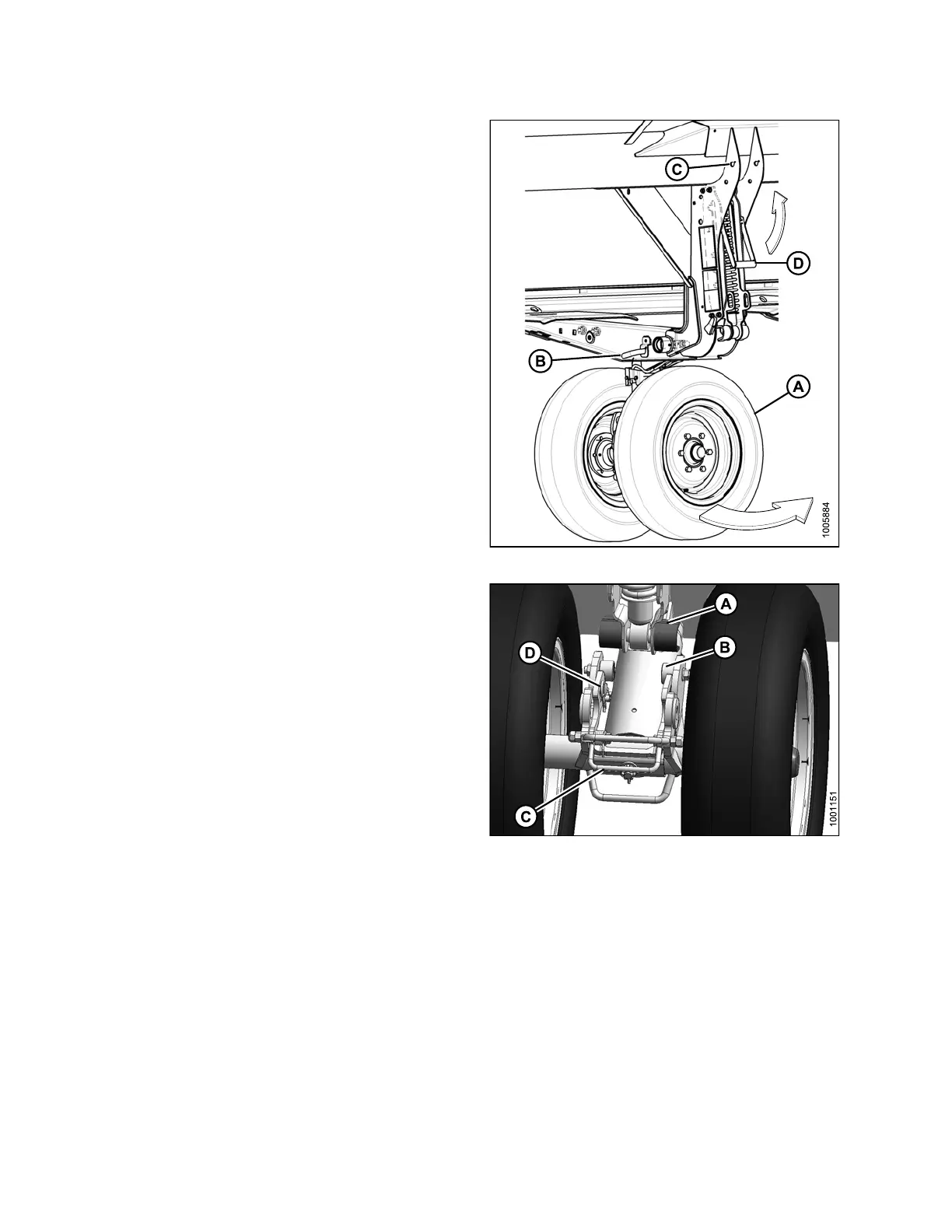

2. Swivel front wheel assembly (A), so wheels are aligned
with lower frame.
3. Remove pin (B) and pull wheel assembly towards rear
of header. Store pin (B) in hole (C) at top of leg.
4. Pull handle (D) up to release and lower the linkage in
the vertical support.
Figure 3.
274: Front (Left) Wheels
5. Align lift hoo k (A) with lug (B) and lift wheel assembly
to engage pin in hook (A). Ensure latch (C) is engaged.
6. Install clevis pin (D) and s ecure with hairpin to center
of axle.
Figur
e 3.275: Front (Left) Wheels
147695 184 Revision A
