MAINTENANCE AN D SERVICING
Lubricating Reel Drive Chain
1. Remove the six bolts (B) that secure the upper
cover (A) to the reel drive and to the lower cover (C).
NOTE:
The lower cov
er (C) may also be removed by
taking off th
e three bolts (D).

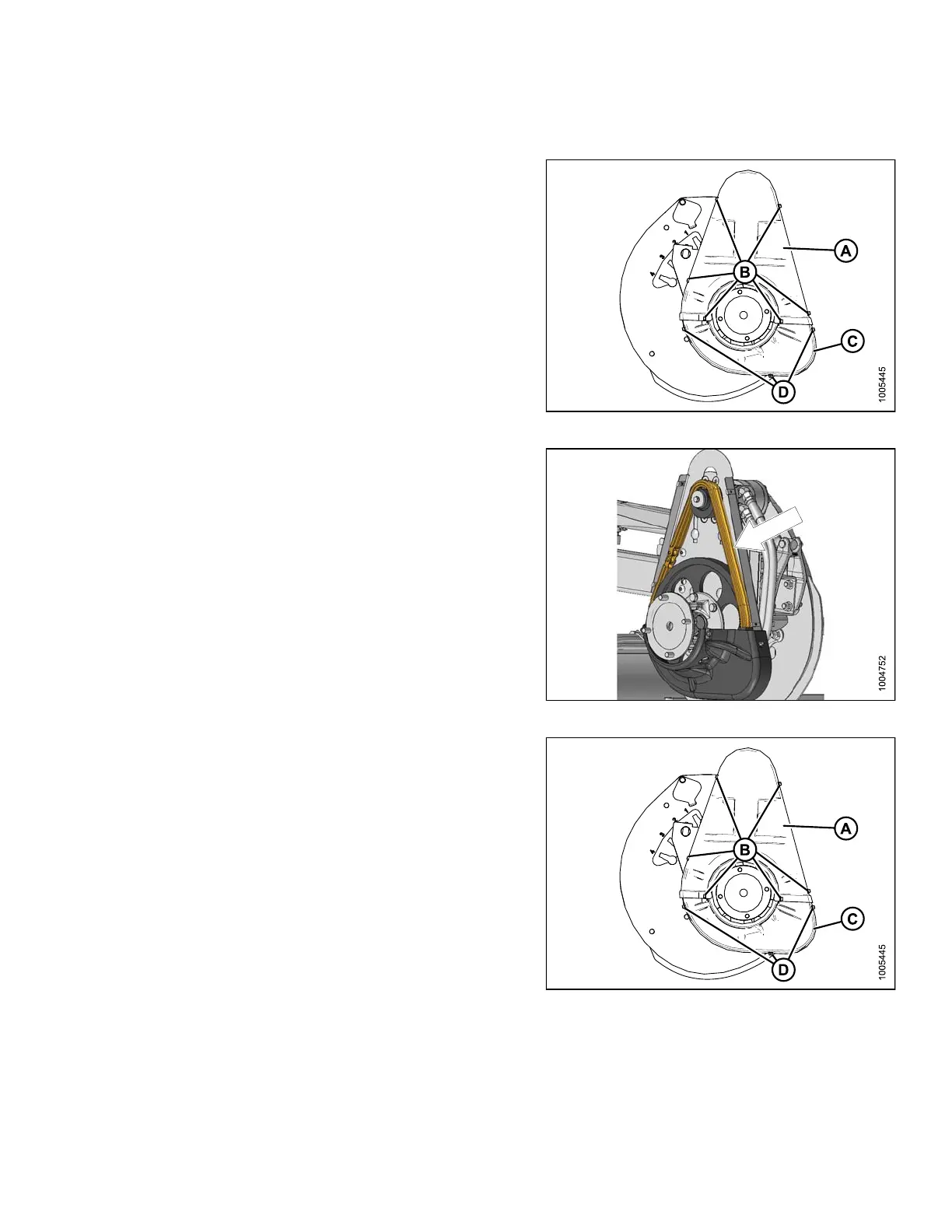

Figure 5.1
6: Drive Co ver
2. Liberally apply grease to chain (A).
Figure
5.17: Drive Chain
3. Position the lower cover (C) first (if removed) and
secure with three bolts (D).
4. Install upper cover (A) using the six bolts (B).
Figu
re 5.18: Reel Drive Cover
