MAINTENANCE AN D SERVICING
5.6.2 Installing Driveline
To install the
driveline, follow these steps:
DANGER
To avoid bodily injury or death from unexpected start-up of m achine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
IMPORTAN T:
If combine output shaft splines match adapter input shaft splines, ensure driveline is installed with longer guard
at adapter gearbox end.
IMPORTAN T:
Ensure driveline is concurrent with length specifica tio ns. Refer to 2.2 Specifications, page 23.
1. Slidedrivelineinhook(A)sothatdisc(B)dropsto
secure driveline .

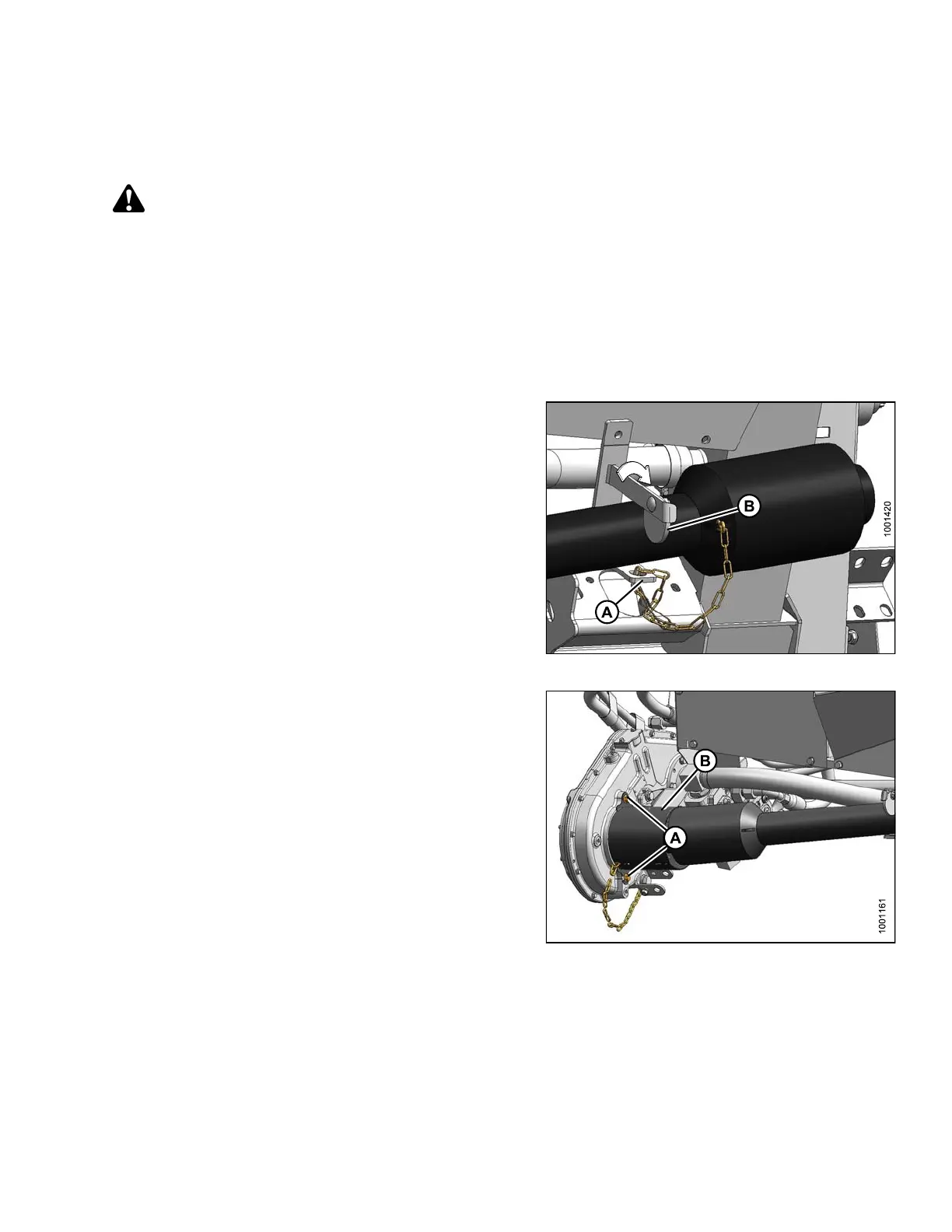

Figure 5.35: Driveline
2. Slide shield (B) over driveline.
3. Position driveline quick disconnect onto adapter
gearbox shaft, pull back collar, and slide onto shaft
until yoke locks onto shaft. Release collar.
4. Position shield (B) on gearbox and secure with nuts (A).
5. Reconnect other end to combine if necessary.
Figure 5.36: Driveline
147695 279 Revision A
