MAINTENANCE AN D SERVICING
7. Tension the draper with tensionerbolt (A) and follow the
directions on the decal for proper draper tensioning.
8. Disengage the reel and header safety props.
9. Start the engine and lower header and reel.
10. Run machine to verify that draper tracks correctly.
11. If adjustment is required, refer to 5.12 .4 Adjusting
Header Draper Tracking, page 337.

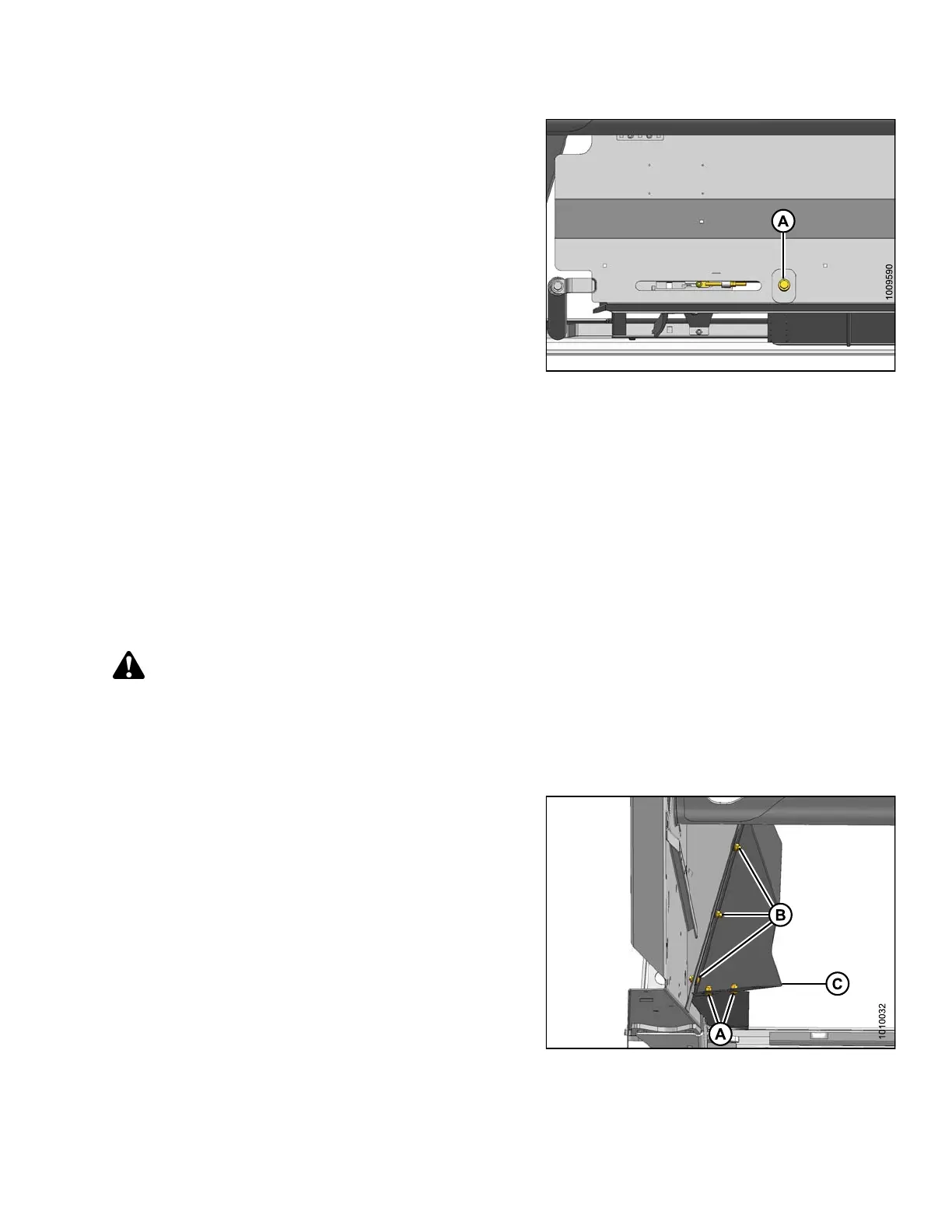

Figure 5.185: Draper Tensioner
5.12.7 Replacing Draper Deflectors
Removing Narrow Drape r Deflectors
To remove
narrow draper deflectors, follow these steps:
NOTE:
Left-end removal is illu strated .
1. Raise ree
l fully and lower header to ground.
2. Shift de
cks to allow work space at one end of header if hydraulic deck shift installed, otherwise move decks
manuall
y after shutting down windrower.
WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
3. Stop engine, remove key, and engage reel safety props.
4. Open endshield.
5. Remove the two Torx
®
head screws (A) and lock nuts.
6. Remove the three carriage bolts (B) and lock nuts and
remove aft deflector (C).
Figure 5.186: Aft Deflector
147695 347 Revision A
