MAINTENANCE AND SERVICING

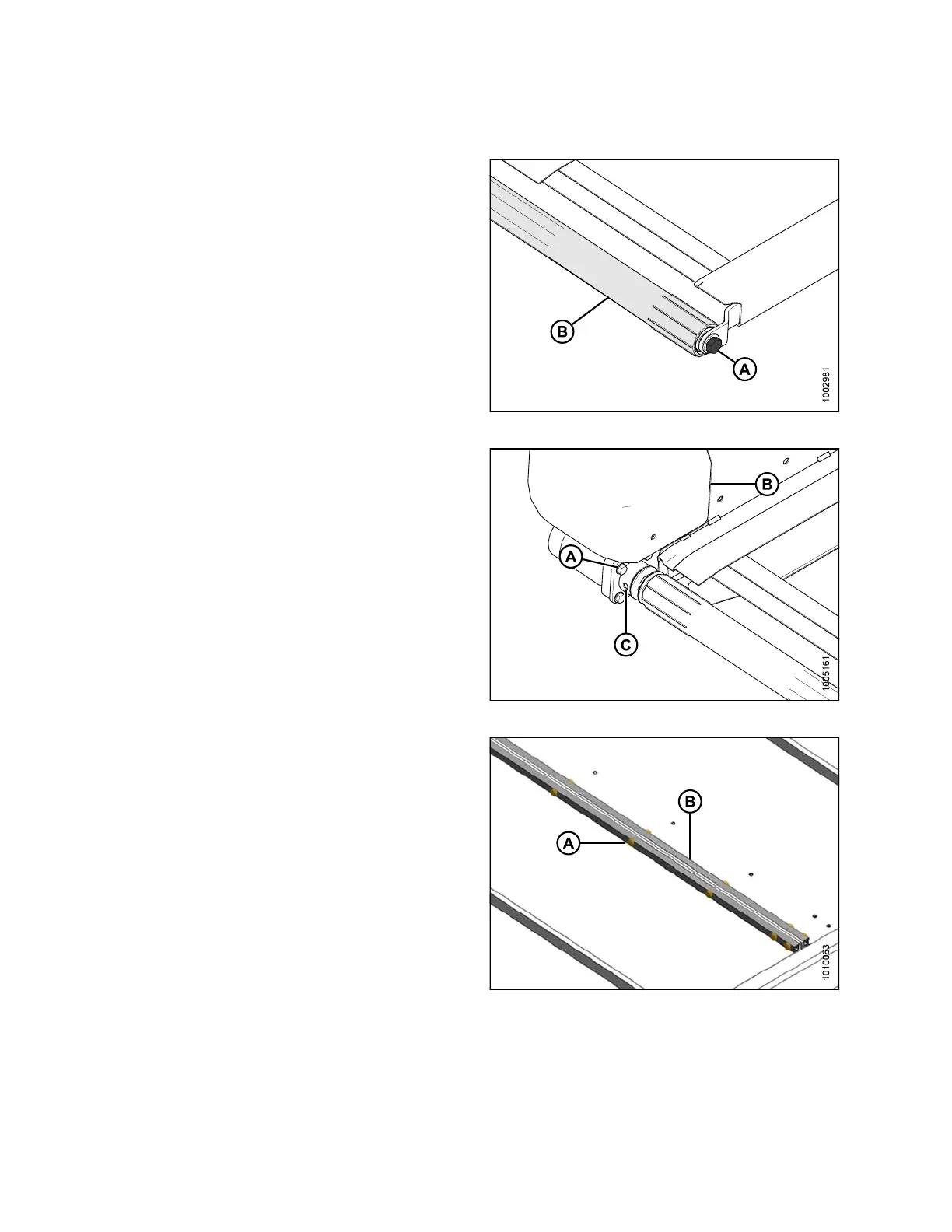

Installing Sid e Draper D rive Roller
1. Position the drive roller (B) between th e roller
support arms.
2. Install bolt (A) that holds the drive roller to the arm
closest to the cutterbar. Torque bolt to 70 ft·lbf
(95 N ·m).
3. Grease motor shaft and insert into the end o f the
drive roller.
Figure 5.1
82: Drive Roller
4. Secure motor to the roller support with four bolts (A).
Torque to 20 ft·lb f (27 N ·m).
NOTE:
Tighten any loosened bolts and reinstall plastic
shield (B), if re moved.
5. Tighten the two setscrews through access hole (C).
Figure
5.183: Drive Roller
6. Wrap the draper over the drive roller and attach ends of
draper with tube connectors (B), screws (A), and nuts.
NOTE:
Head o
f screws must face the center opening.
Figu
re 5.184: Draper Connector
147695 346 Revision A
