MAINTENANCE AND SERVICING
13. Slide support (A) off of the bushing halves (B).
NOTE:
Twotinetubesh
ave supports that are assembled
opposite to wh
at is shown. Those supports (A)
can be rotated
for the flange to clear the channels
before they c a
n be moved off the bushing. The
tine tube can
also be moved outward slightly.
14. Remove the bu
shing halves (B).

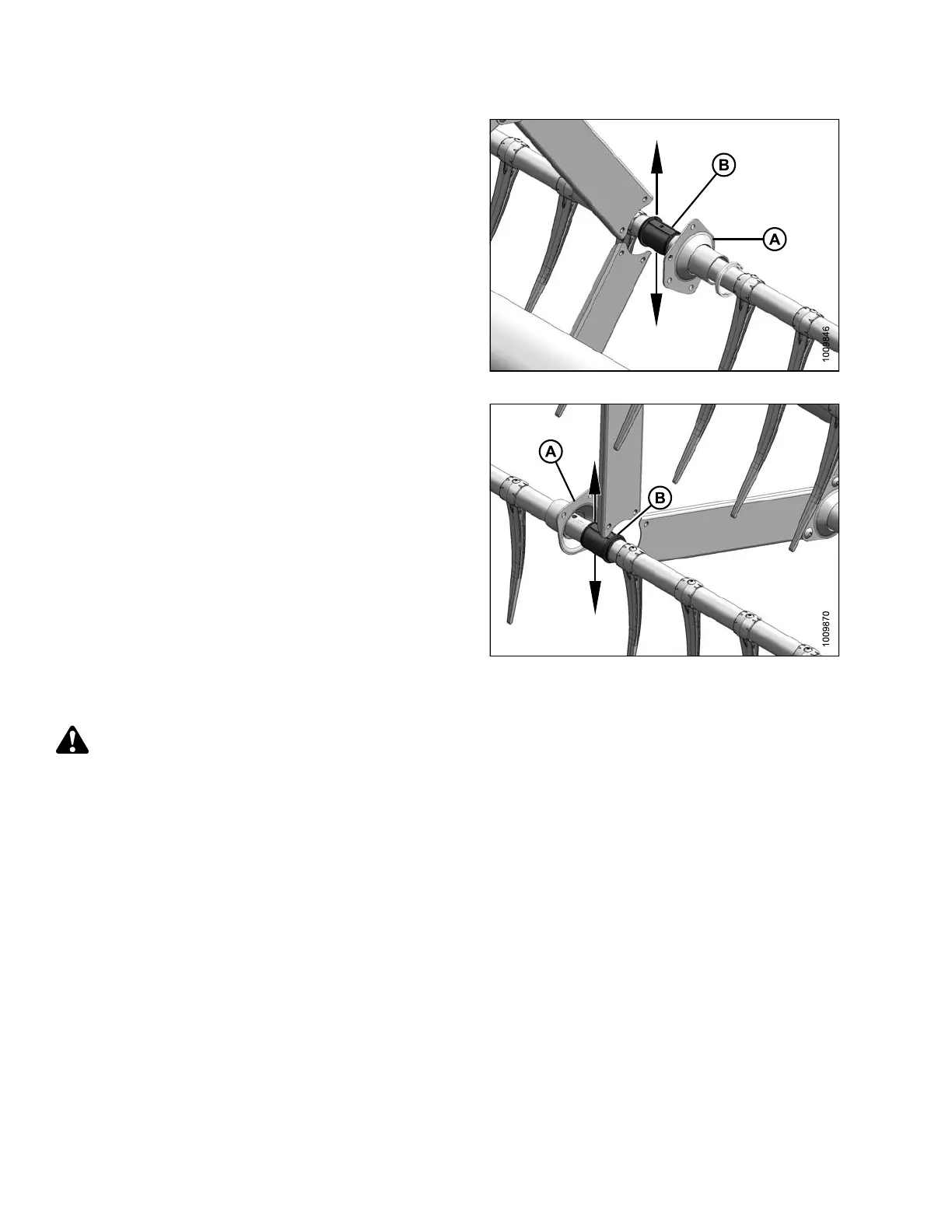

Figure 5.217: Support
Figure 5.218: Opposite Support
Installing B ushings on 5-, 6- or 9-Bat Reels
WARNING
To avoid bodily injury from fall o f raised reel, always engage reel safety props before going under raised
reel for any reason.
IMPORTANT:
Ensure tine tube is supported at all times to prevent damage to the tube or other components.
147695 362 Revision A
