MAINTENANCE AN D SERVICING
NOTE:
A pair of modified channel lock pliers is recommended
to install the bushing cla mps. Secure pliers (A) in vice
and grind in a notch (B) at the end of each arm that fits
the clamp (C).

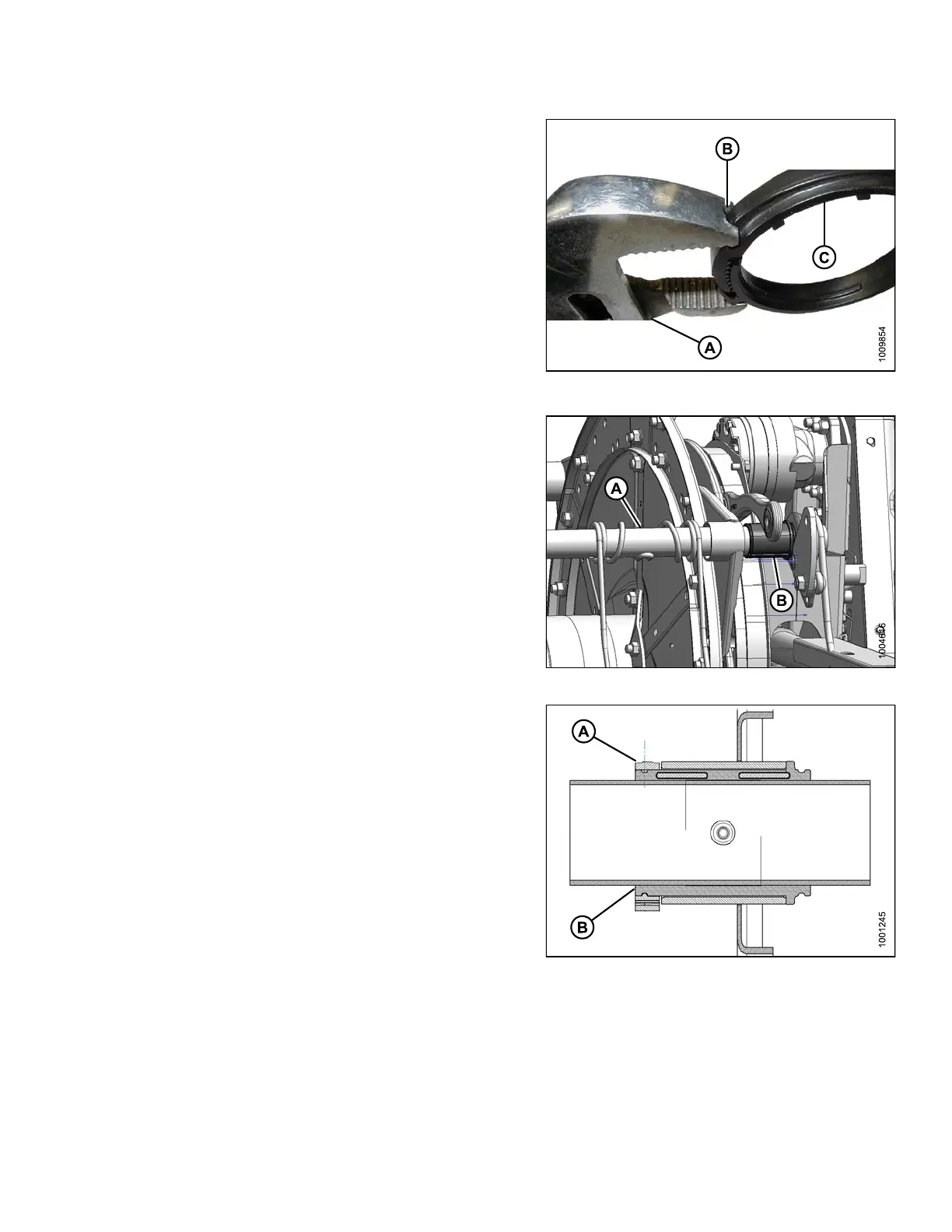

Figure 5.219: Modified Pliers
Cam End Bushings
1. Position bushing halves (B) on tine tube with flangeless
end adjacent to reel arm, and locate lug in each
bushinghalfinholeintinetube.
2. Slide tine tube (A) toward ta il end of reel to inse rt
the bushing (B) into the reel arm. If s are installed,
ensure that the bushings at those locations slide into
the support.
3. Reinstall fingers or tines if removed. Refer to:
• Install
ing Steel Tines, page 356
• Install
ing Plastic Fingers, page 357
Figure 5
.220: Cam End
4. Install b ushing clamp ( A) on to tine tube adjacent to
flangeless end of bushing (B).
5. Position cla mp (A) on bushings (B) so that edg es
of clamp and bushing are flush when clamp fi ts into
groove on bushing and lock tabs are engaged.
Figu
re 5.221: Bushing
147695 363 Revision A
