MAINTENANCE AND SERVICING

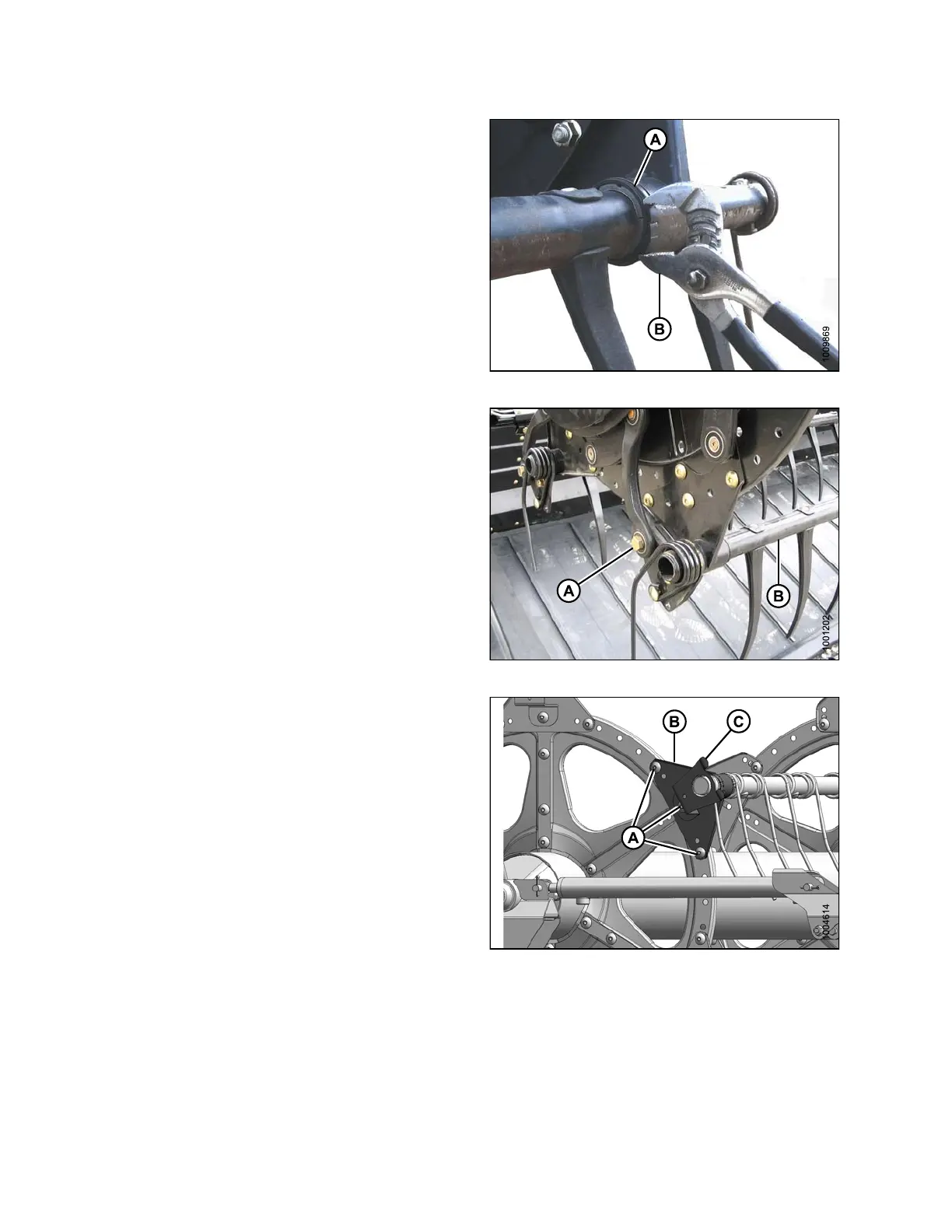

6. Tighten clamp (A) with modified channel lock pliers (B)
so that finger pressure will NOT move clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.222: Installing Clamp
7. Line up tine bar (B) with ca m arm and ins ta ll bolt (A).
Torque bolt to 120 ft·lbf (1 65 N·m).
Figure 5.223: Cam End
8. At the center dis c, install t he bolts (A) securing arm (B)
to disc.
9. At the tail end, install reel arm (B) and endshield
support (C) from the tail end of the reel at applicable
tine tube location with bolts (A).
NOTE:
There
are no endshields on the center discs.
Figure 5.224: Tail End
147695 364 Revision A
