MAINTENANCE AND SERVICING
Removing Reel Drive Motor
To remove the reel drive motor from a single or double-reel header, follow these steps:
1. Disconnect hydraulic lines (A) at motor (B). Cap or plug
open ports and lines.
2. Slide motor (B) and motor mount (C) up or down so that
attachment bolts (D) are exposed in holes and slots in
back plate.

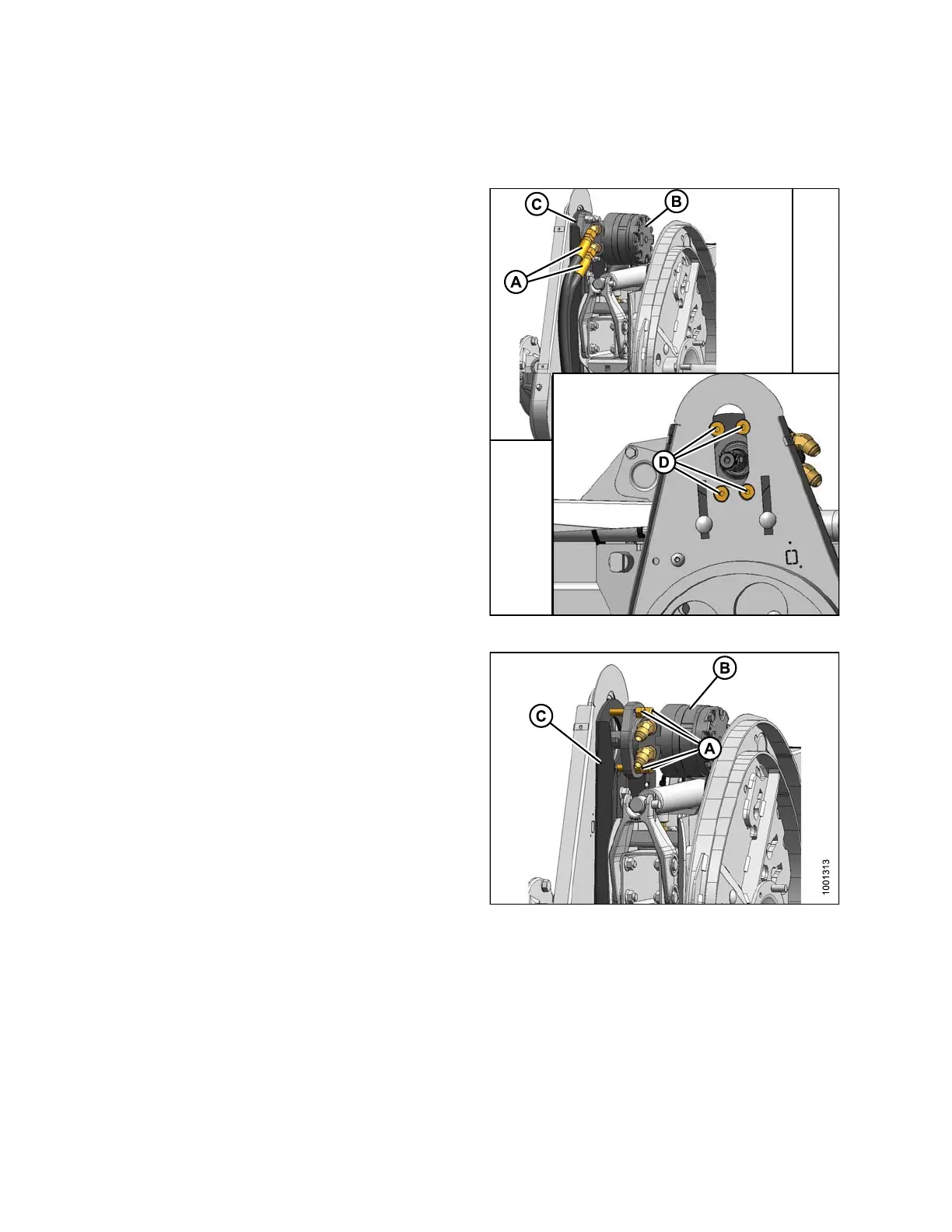

Figure 5.262: Reel Drive M otor
3. Remove f
our nuts (A) and attachment bolts and
remov e m
otor (B) from motor m ount (C ). Retrieve the
spacer
(if installed) from between the m otor (B) and
motor m
ount (C).
Figure 5.263: Reel Drive M otor
Installing Reel Drive Motor
To install the reel drive hydraulic motor, follow these steps:
147695 380 Revision A
