MAINTENANCE AN D SERVICING

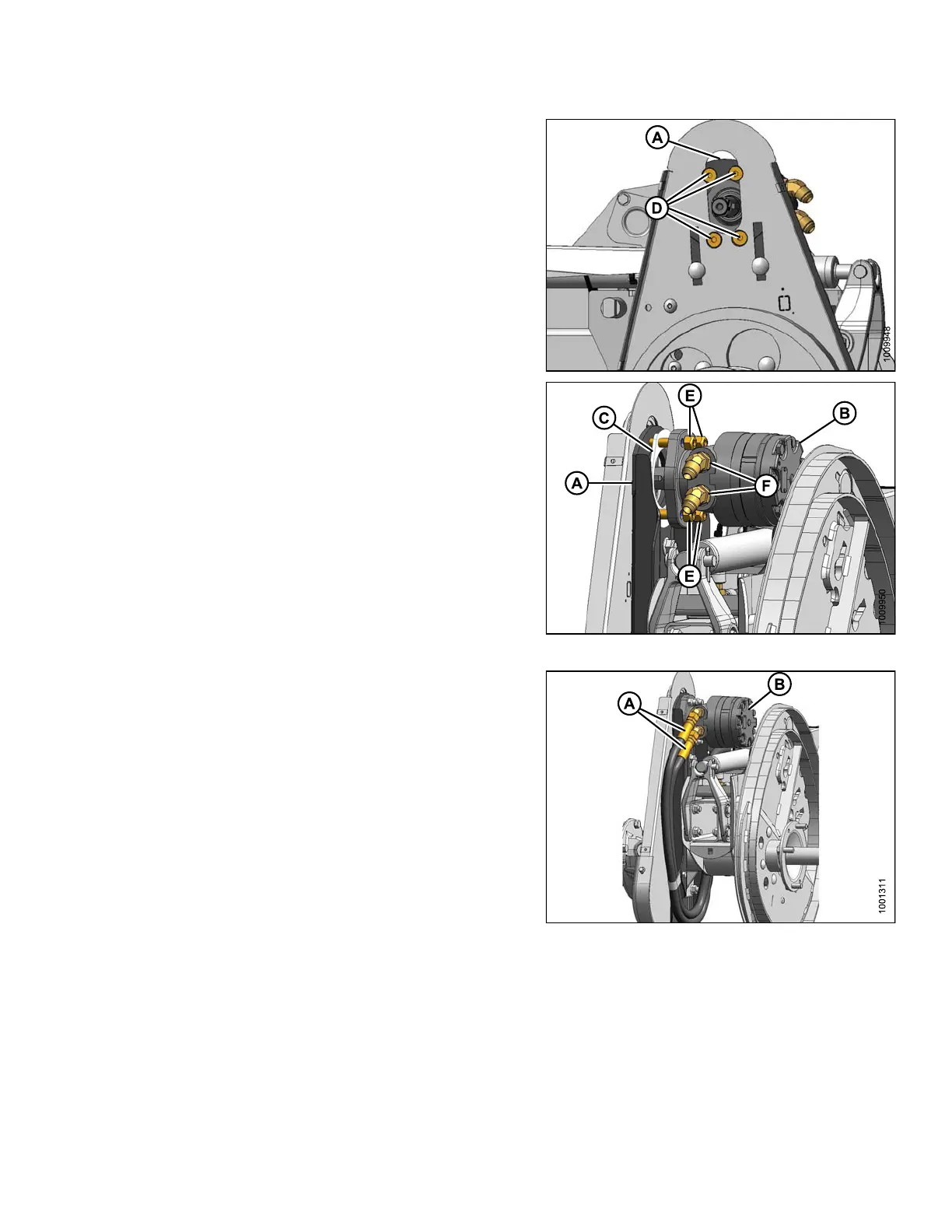

1. Slide motor mount (A) up or down so that mounting
holes are accessible through openings in chain case.
2. Attach hydraulic motor (B) and spacer (C) to motor
mount with four 1/2 in. x 1.75 countersunk bolts (D).
3. Secure motor with lock nuts (E).
4. Torque nuts to 54 ft·lbf (73 N·m).
5. If installing new motor, install fittings (F) from old motor
onto new motor.
Figure 5.264: Reel Drive Motor
6. Reattac
h hydraulic lines (A) to motor (B).
Figure 5.265: Reel Drive
147695 381 Revision A
