MacDon FFT FlexDraper FD75 - Lexion Combines; Attaching Header to Lexion Combine

HEADER ATTAC HMENT/D ETACH ME NT
4.4 Lexion Combines
4.4.1 Attaching Header to Lexion Combine
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator ’s seat for any reason.
To attach the header to a Lexion combine, complete the
following ste ps:
1. Move handle (A) on the CA25 Combine Adapter into
raised position, and ensure pins (B) at bottom corners
of adapter are retracted.
CAUTION
Never start o
r move the machine until you are sure all
bystanders h
ave cleared the area.

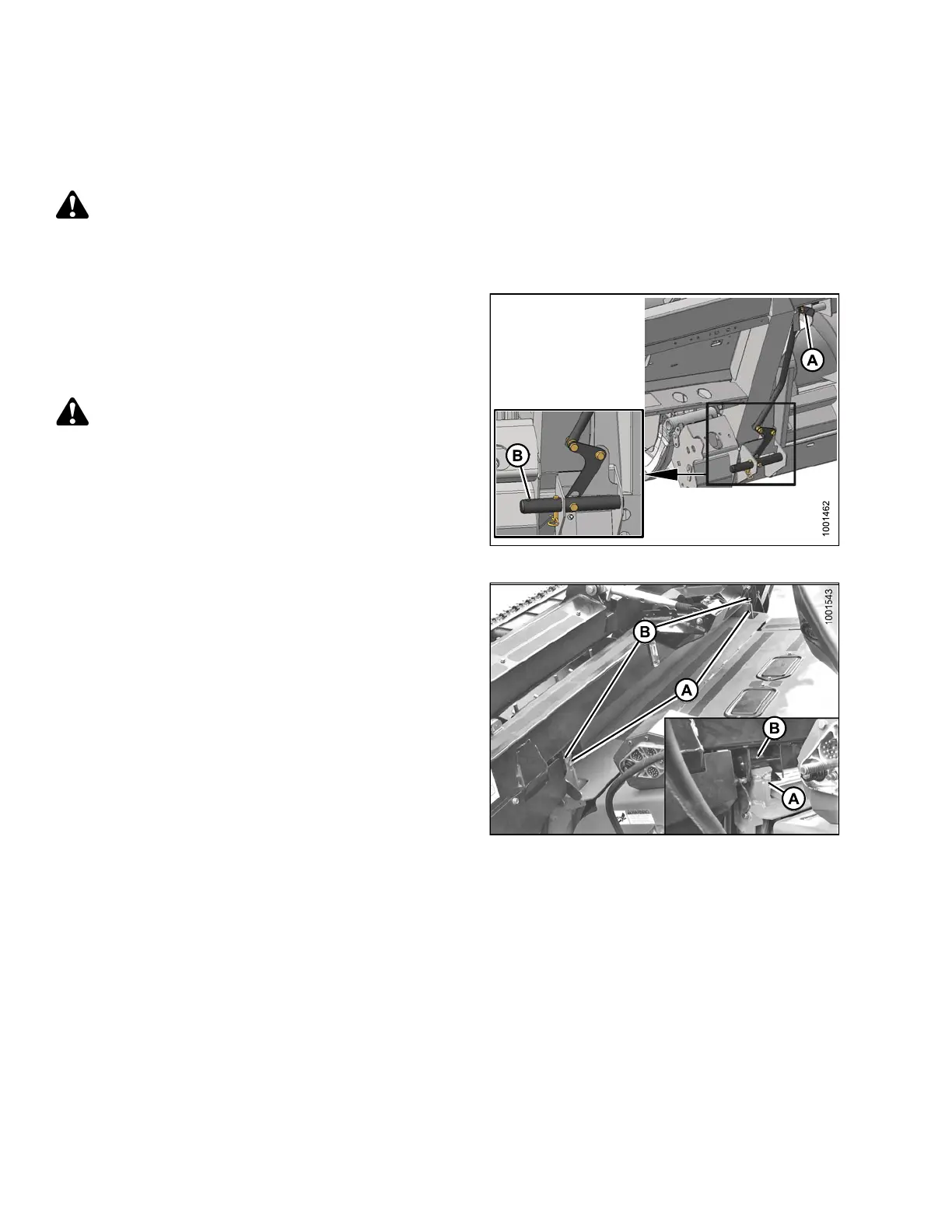

Figure 4.36: Pins Retracted
2. Start engine and slowly drive combine up to adapter
until feeder house is directly under the adapter top
cross member.
3. Raise feeder house to lift header, ensuring feeder
house posts (A) are properly engaged in adapter
frame (B).
4. Position header slightly off the ground.
5. Stop engine and remove key from ignition.
Figure 4.37: Header on Combine
147695
