HEADER ATTA CHMEN T/DETACHMENT
6. Remove locking pin (B) from adapter pin (A).

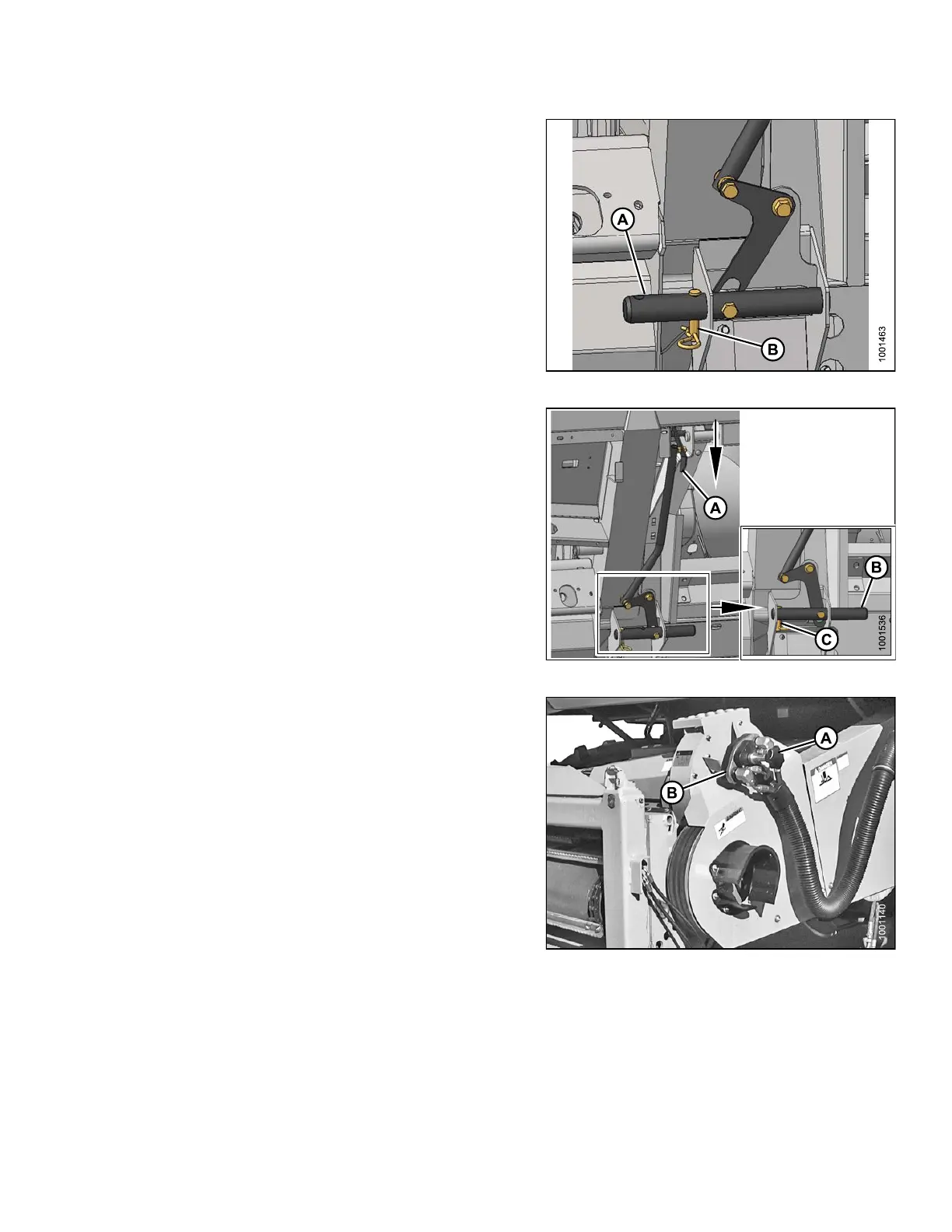

Figure 4.38: Locking Pins
7. Lower handle (A) to engage adapter pins (B) into
feeder house. Reinsert locking pin (C) and secure
with hairpin.
8. Stop engine and remove key from ignition.
Figure 4.39: Engaging Pins
9. Unscrew knob (A) on combine coupler (B) to release
coupler from combine receptacle and clean coupler.
Figure 4.40: Combine Coupler
147695 215 Revision A
