HEADER ATTAC HMENT/D ETACH ME NT

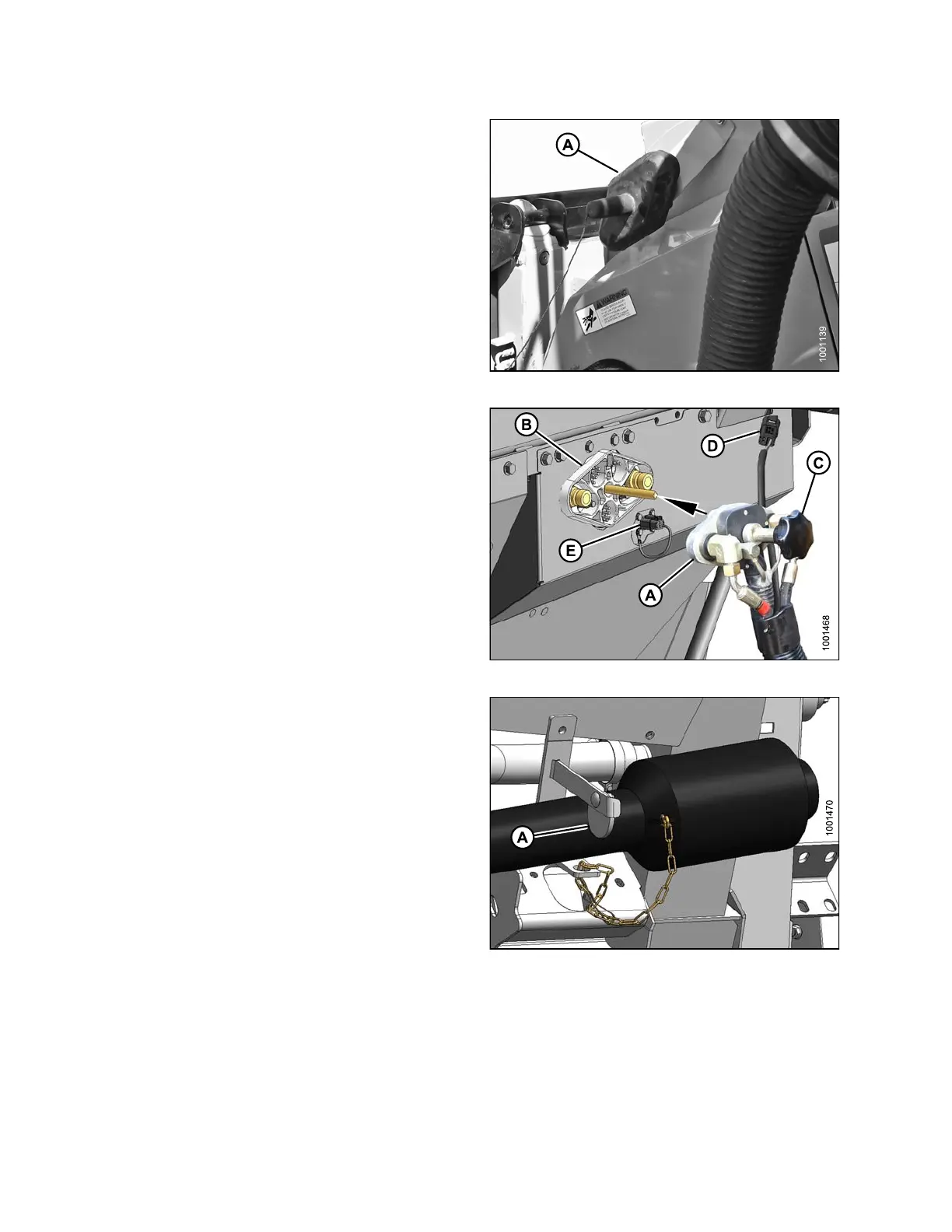

10. Place adapter receptacle cover (A) onto
combine recep tacle.
Figure 4.41: Receptacle Cover
11. Clean mating surface of coupler (A) and position onto
adapter receptacle (B).
12. Turn knob (C) to secure coupler to receptacle.
13. Connect combine harness (D) to reel fore-aft/header
tilt selector receptacle (E).
Figure 4.42: Coupler
14. Rotate disc (A) on adapter driveline s torage hook and
remove driveline from hook.
Figure 4.43: Driveline
147695 216 Revision A
