OPTIONS AND ATTACHMENTS
6.2.3 Stu b Gua
rd Conversion Kit
Stub guards, c
omplete with top guides and adjuster shoes,
are design e d t
ocuttoughcrops.
Installation
and adjustment instructions are included in
the kit.
Order b un d le
according to the length of your header:
• 30ft. –MD#B
5012
• 35ft. –MD#B
5013

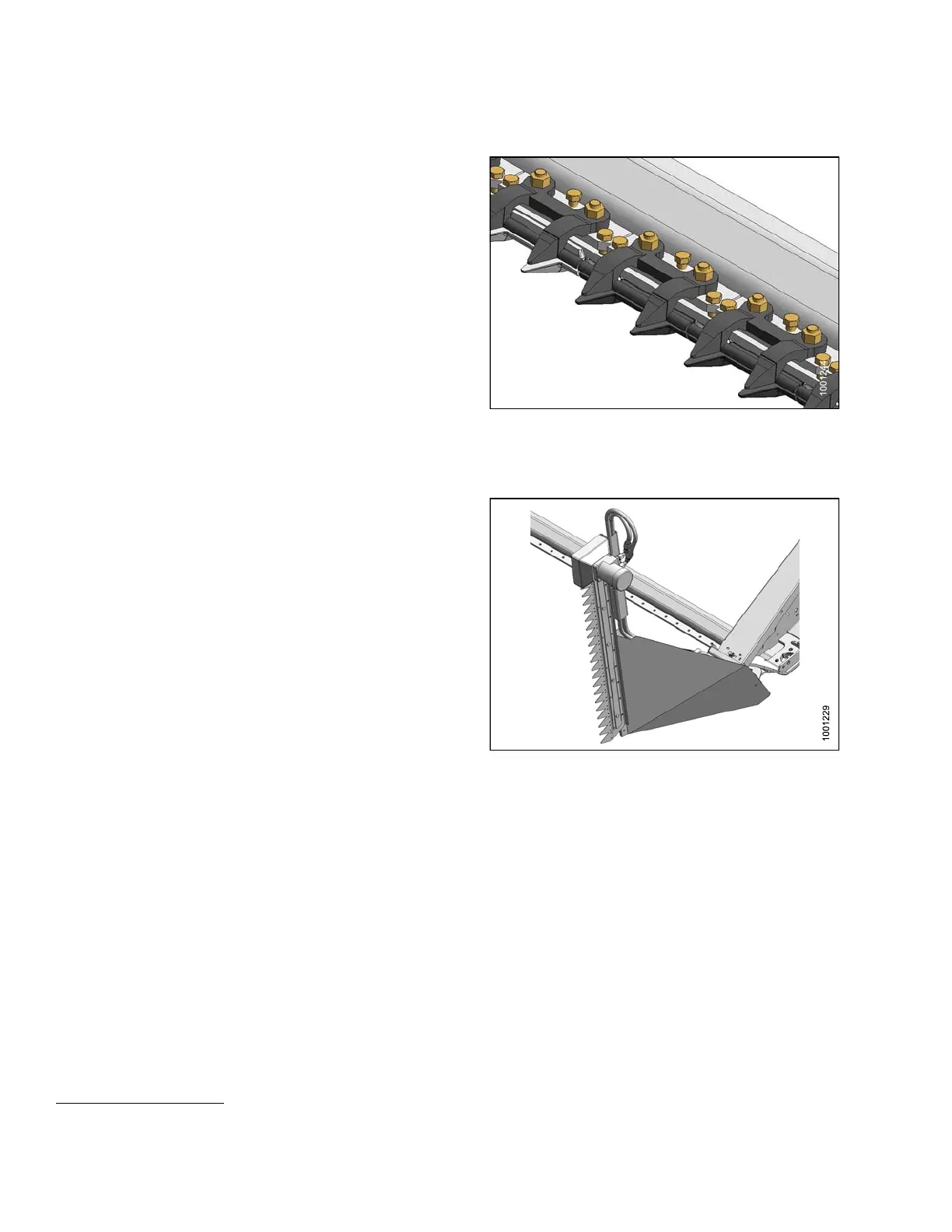

Figure 6.7: Stub Guards
6.2.4 Vertical K nife Mounts
The vertical knife
17
mounts allo w installation of vertically
oriented knives onto both ends of the header.
Installation and adjustment instructions are included w ith
the bundle.
Order bundles based on left or right side:
• Left-hand – MD #B5757
• Right-hand – MD #B5758
NOTE:
If mounting on multiple headers, you will also require the
auxiliary vertical knife plumbing kit MD #B5406.
Figure 6.8: Vertical Knife Mount
