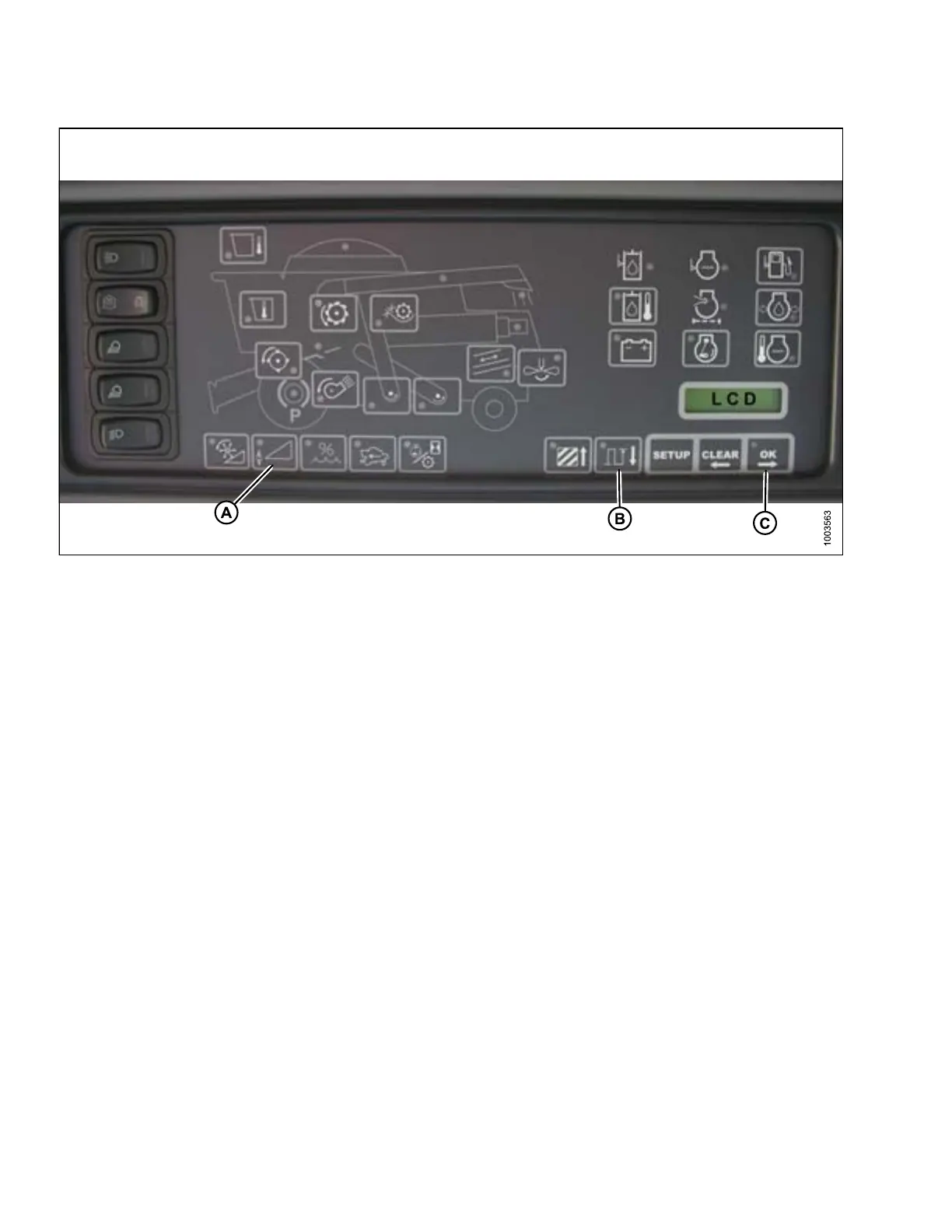

Figure 3.156: Combine Heads Up Display
Engaging the Auto Header Height Control (Gleaner R65/R75)
NOTE:
Change
s may have been made to the combine controls or display since this document was published. Refer to
the com
bine operator’s manual for updates.
The following system components are required in order for the Auto Header Height Control (AHHC) to work:
• Main module (PCB board) and header driver module (PCB board) mounted in card box in Fuse Panel Module (FP).
• Multi-Function Control Handle operator inputs.
• Operator inputs mounted in the control console module (CC) panel.
NOTE:
In ad
dition to the above components, the electro hydraulic header lift control valve also is an integral part of
the s
ystem.
