MAINTENANCE AND SERVICING
7. Remove the f ou r screws (A) and rem ov e deflector (B).
8. Repeat above steps for opposite end.

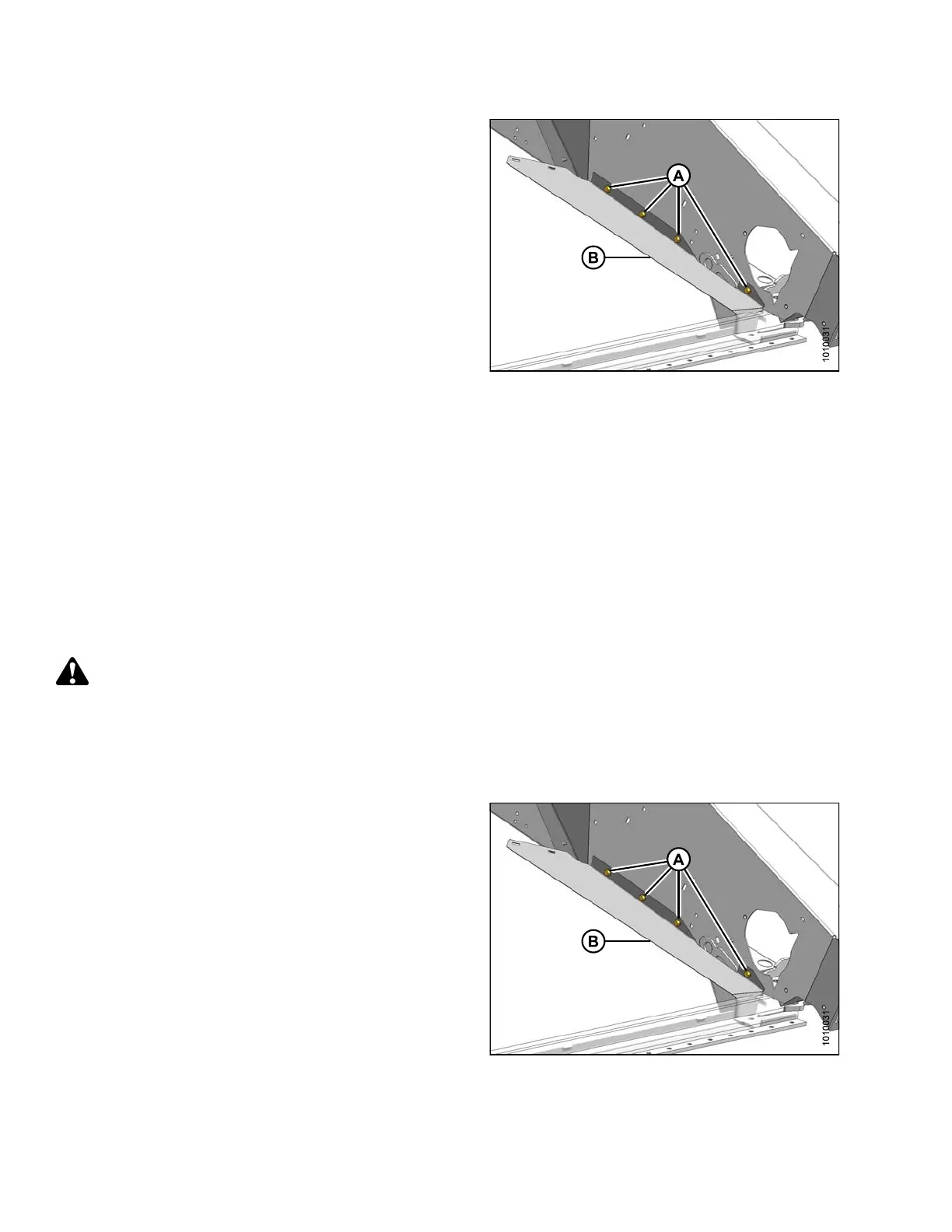

Figure 5.187: Forward Deflector
Installing Narrow Draper Deflectors
Narrow defl
ectors can replace wide deflectors if bunching occurs at the ends of the header when decks are set
for cente
r delivery.
To instal
l narrow draper deflectors, follow these steps:
NOTE:
Left-end installa tion is illustrated.
1. Raise re
el fully and lower header to ground.
2. Shift de
cks to allow work space at one end of header if hydraulic deck shift installed, otherwise move decks
manuall
y after shutting down w indrower.
WARNING
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under machine for any reason.
3. Stop engine, remove key, and engage reel safety props.
4. Open endshield.
5. Position forward deflector (B) onto endsheet and
temporarily install forward and aft 3/8 in. x 5/8 self
tapping screw s (A).
6. Check fit of forward end of deflector onto cutterbar.
There should be no gap between deflector and
cutterbar. Remove and bend deflector as required to
obtain best fit.
7. Install the four 3/8 in. x 5/8 self-tapping screws (A)
and tighten.
Figure 5.188: Forward Deflector
147695 348 Revision A
