OPERATION
2. Use tool (B) to unlock latch (A) at lower rea r corne r
of endshield.
3. Lift shield at aft end to clear pin at top rear of endshield.
4. Swing shield out and away from header while
maintaining forward pressure to prevent shield from
slipping out of tab (C) at front of endsheet.
IMPORTANT:
Do NOT force shield once it has reached its end
of travel, as damage to the shield structure can
occur. Shield is designed to open sufficiently for
normal access to the drive system and manual case
as shown.

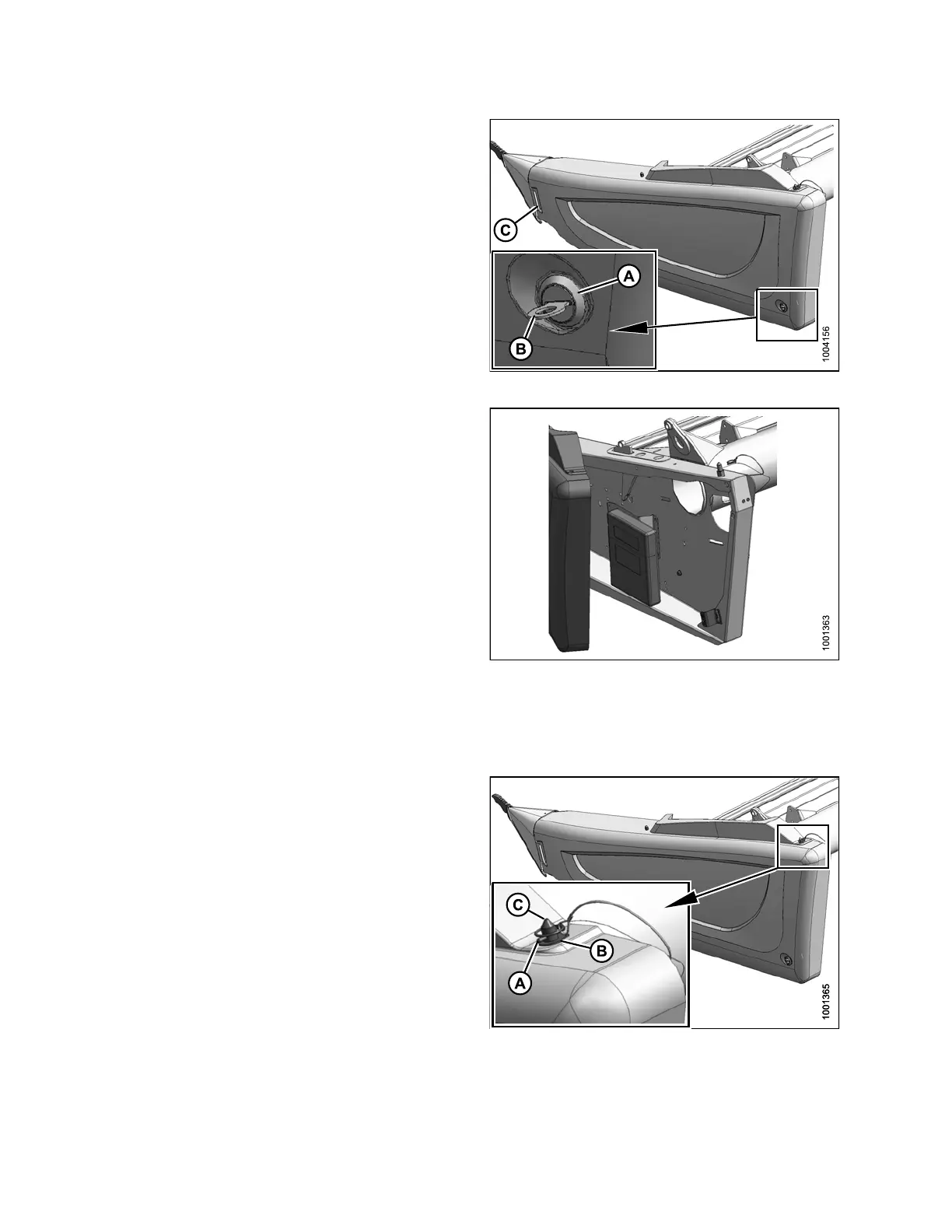

Figure 3.8: Left-Hand Endshield
NOTE:
If more access is required to the front of the drives
area, carefully disengage front of shield from tab at
the front of the endsheet and then swing front of the
shield away from the header.
NOTE:
If complete access to the endsheet area is required,
the shield can be removed. Refer to Removing
Endshields, page 35.
Figure 3.9: Left-Hand Endshield Open
Closing Endshields
To clos
e an endshield, follow these steps:
1. Maint
ain forward pressure and swing rear of shield
towar
ds header.
2. Lift s
hield and engage pin (C) on top of frame endsheet.
Figure 3.10: Left-Hand Endshield
147695 34 Revision A
