OPERATION
3. Push in shield to engage lower latch (A).
4. Use tool (B) to lock lower latch (A).

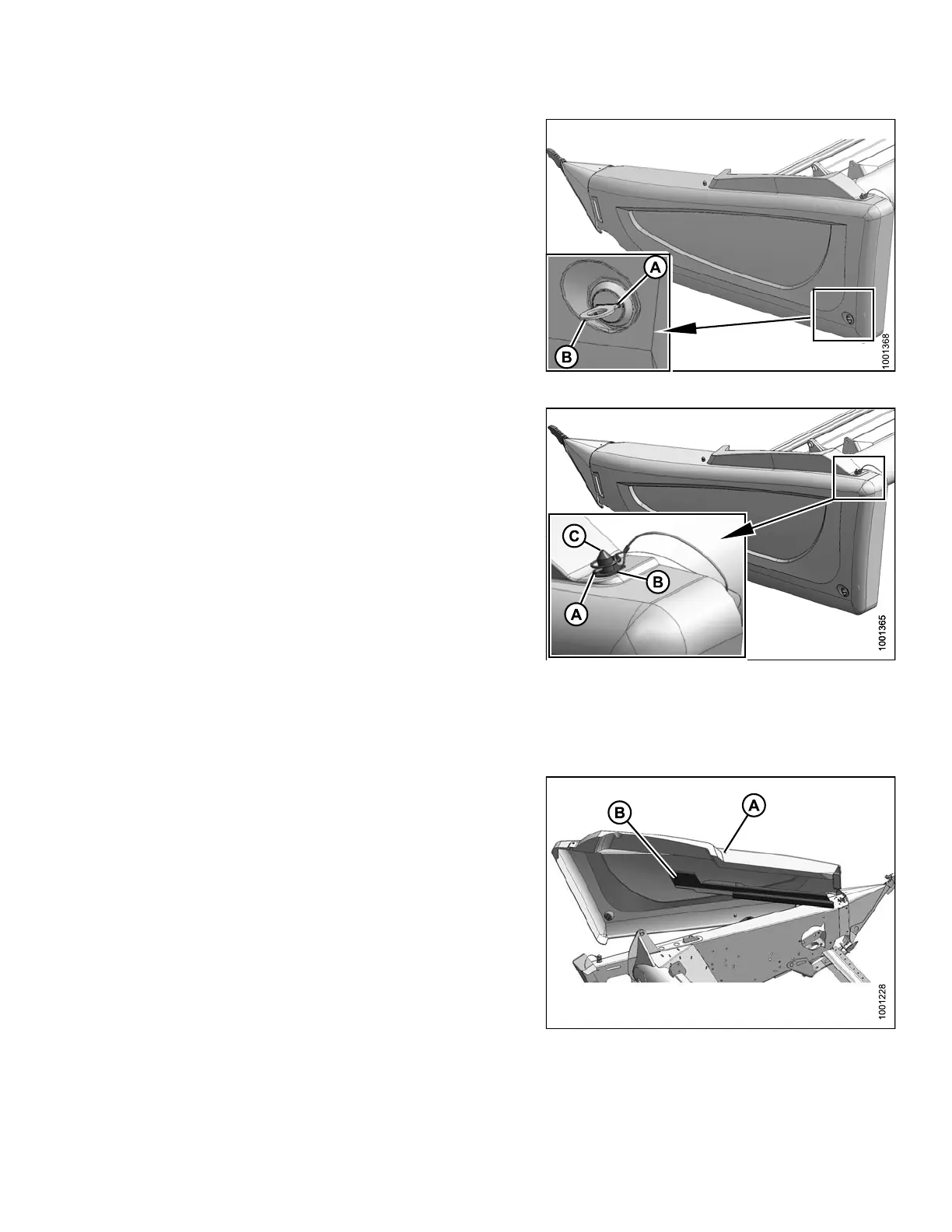

Figure 3.11: Left-Hand Endshield
5. Replace tool (B) and lynch pin (A) on top pin (C).
Figure 3.12: Left-Hand Endshield Pin
Removing Endshields
To remo
ve an endshield, follow these steps:
1. Open en
dshield. Refer to Opening Endshields, page
33.
2. Remov
e acorn nut (A) that secures the endshield to
suppo
rt (B).
3. Lift e
ndshield off support (B).
Figure 3.13: Left-Hand Endshield
147695 35 Revision A
