OPERATION
3.7.10 Reposi
tioning Fore-Aft Cylinders with Multi-Crop Rapid Reel
Conversion Op
tion
The reel can be moved approximately 9 in. (227 mm) further aft by repositioning the fore-aft cylinders on the reel
arms. The Multi-Crop Conversion option is applicable to double-reel headers only.
WARNING
Stop combine engine and remove key before making adjustments to machine. A child or even a pet could
engage the drive.
1. Position reel fully aft with support arms horizontal.
2. Stop engine and remove key.
Reposition left arm cy lind er as follows:
NOTE:
Reel components are not shown for clarity.
3. Remove cotter pin (A) and remove clevis pin (B).
4. Push reel back until cylinder barrel (C) lines up with the
aft hole in bracket (D).
5. Reinsta ll the clevis pin (B) at new position and secure
with cotter pin (A).

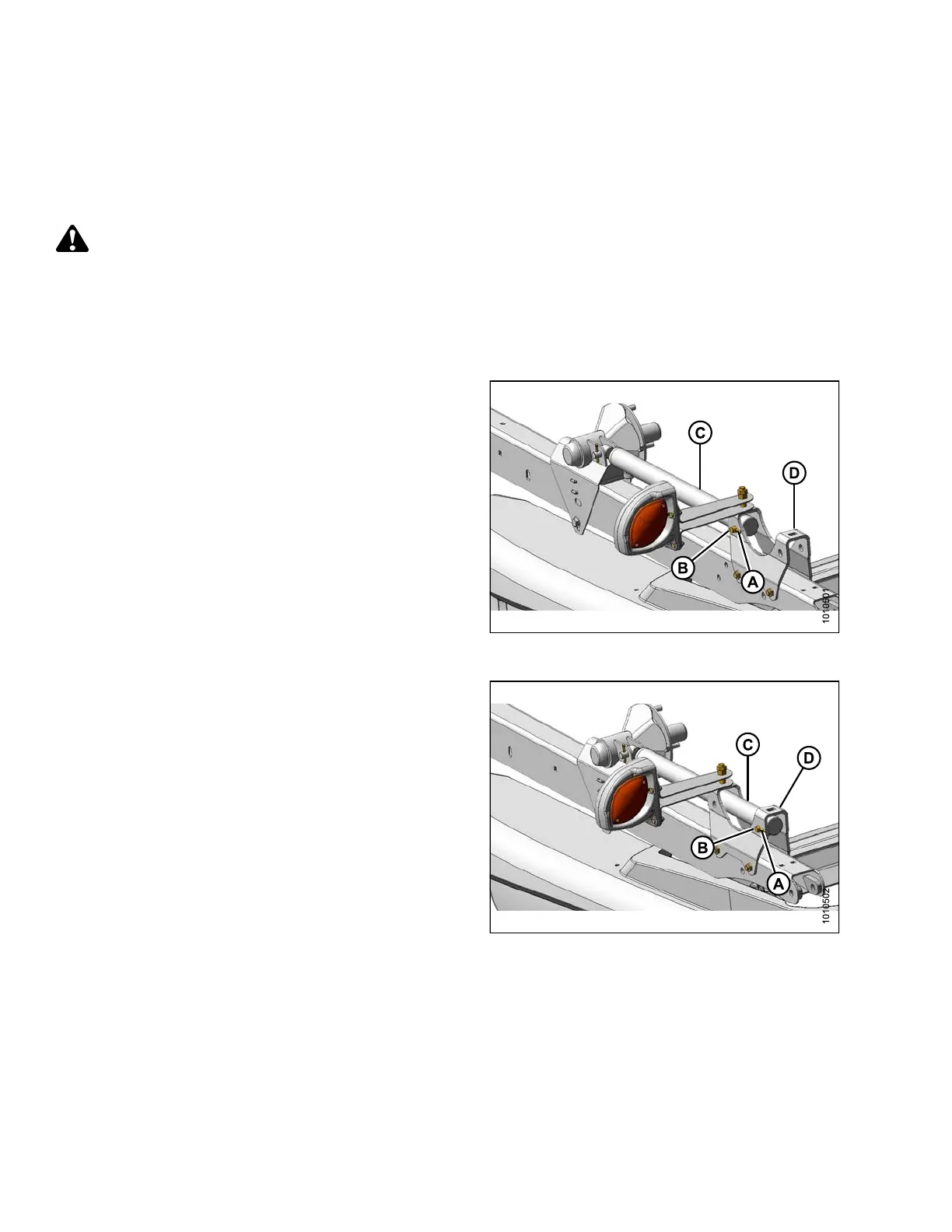

Figure 3.70: Forward Position – Left Arm
Figure 3.71: Aft Position – Left Arm
147695 78 Revision A
