HEADER ATTA CHMEN T/DETACHMENT
9. Position coupler (A) on adapter receptacle and lower
handle (B) to lock coupler.

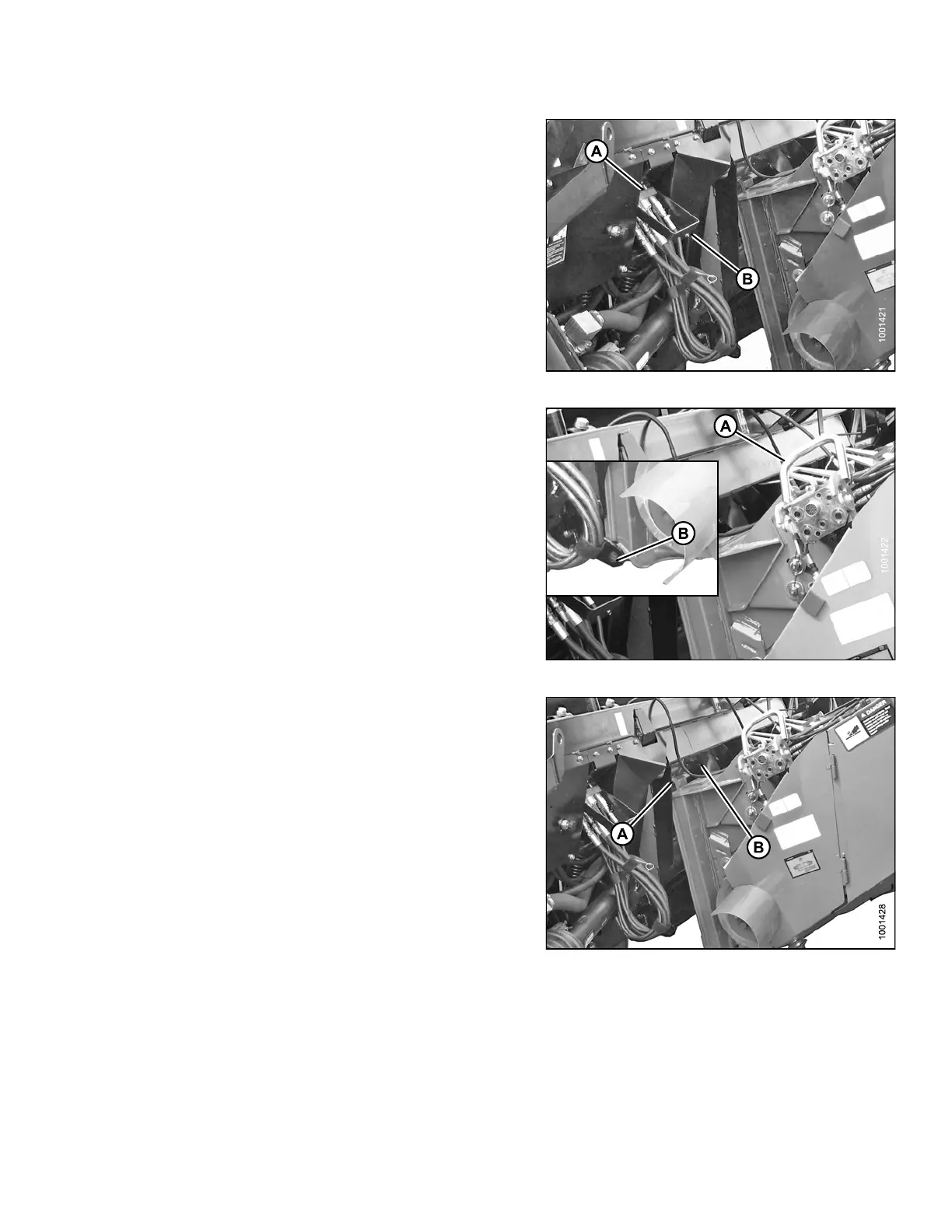

Figure 4.33: Coupler Storage
10. Push handle (A) on combine toward feeder house to
disengage feeder house pin (B) from adapter.
Figure 4.34: Feeder House Locks
11. Lower feeder house until saddle (A) disengages and
clears adapter support (B).
12. Slowly back combine away from adapter.
Figure 4.35: Header/Feeder House
