HEADER ATTAC HMENT/D ETACH ME NT
4. Slidedrivelineinhook(A)sothatdisc(B)drops
to secure.

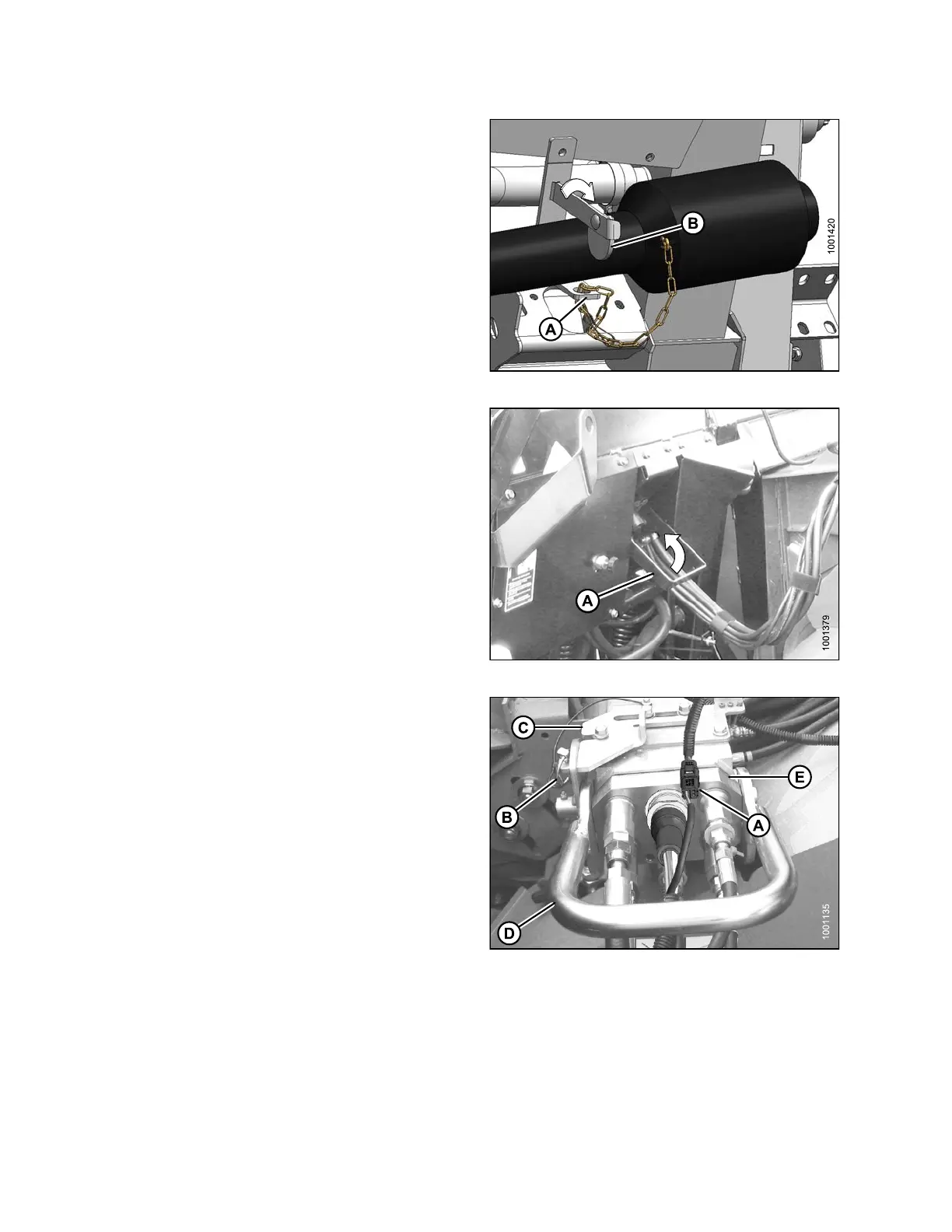

Figure 4.30: Driveline
5. Lift handle (A) on adapter.
Figure 4.31: Coupler Storage
6. Disconnect harness (A) from combine connector.
7. Remove lynch pin (B) and slide lock (C) to release
handle (D).
8. Lift handle (D) to full vertical position to release
coupler ( E) from combine.
Figure 4 .32: Multicoupler
147695
2
12
Revision A
