MAINTENANCE AN D SERVICING
12. Slide tine tube (A) outboard to expose the bushing.
Remove the b ushing halves (B ). If required, remove
the nex t tine or p lastic finger, so that the arm can slide
off the bushing. Refer to:
• Removing Plastic Fingers, page 356
• Removing St ee l Tines, page 355

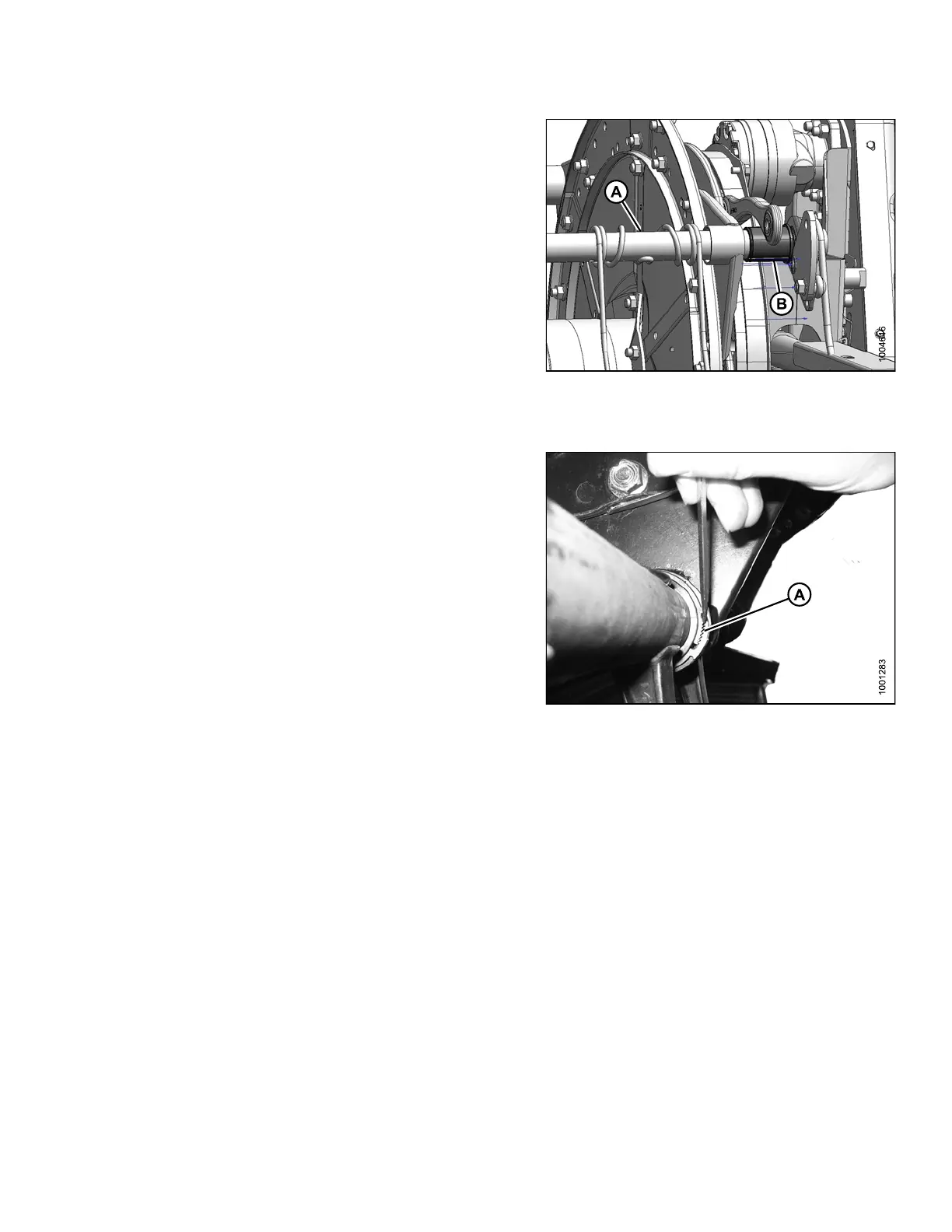

Figure 5.215: Cam End
Figure 5.216: Bushing Clamp
147695 361 Revision A
