MAINTENANCE AND SERVICING

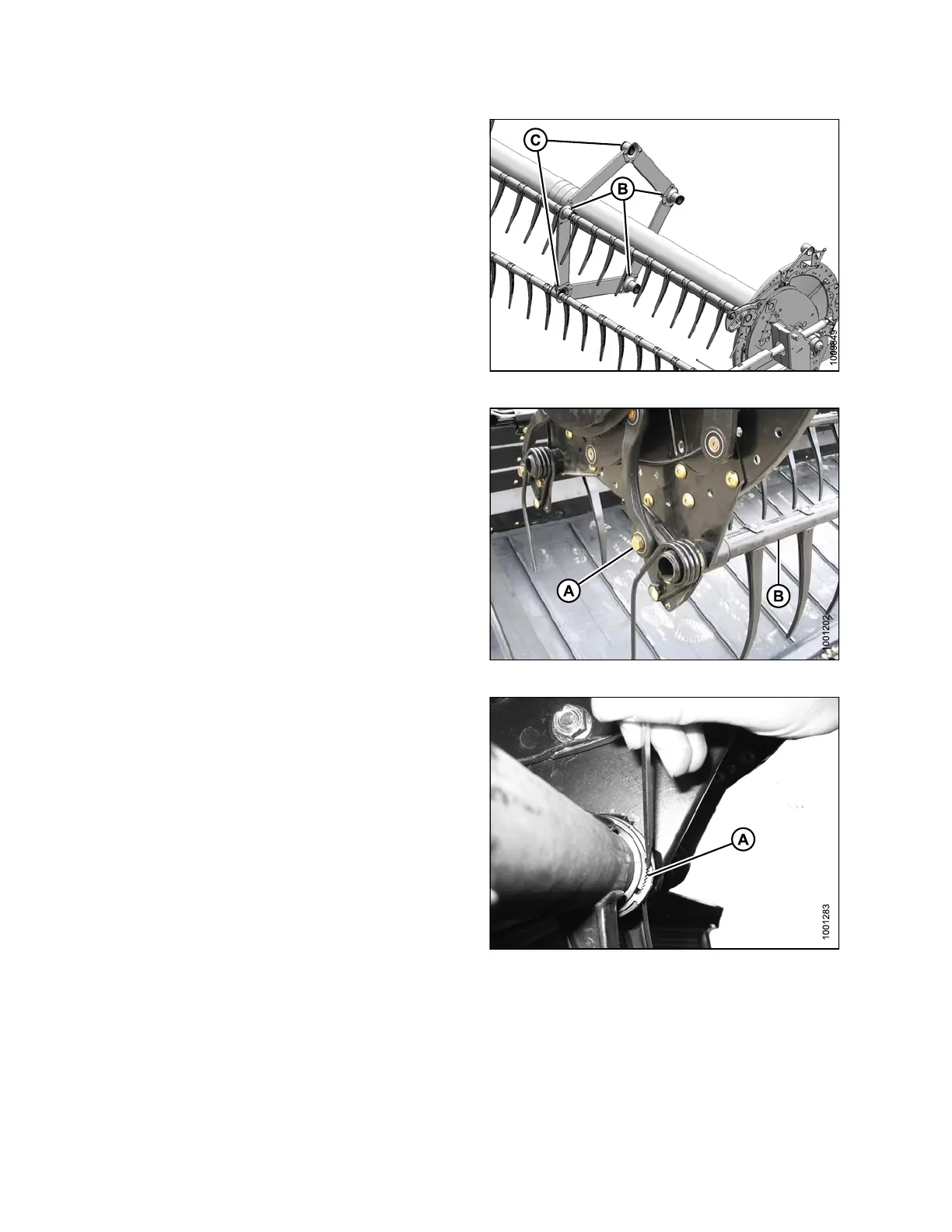

9. At the tine tube support (if installed) locations ,either
release the bushing clamps or disconnect the support
channels from the tube support, depending on which
tine tube is being moved. Three tine tubes (B) require
that the channels be disconnected and two (C) require
only to remove the bushing clamp.
Figure 5.212: Tine Tube Supports
10. Remove bolt (A) at on cam linkage so that tine tube (B)
is free to rota te.
Figure 5.213: Cam End
11. Release bushing clamps (A) at the cam disc with a
small s crewdriver to separate the serrations. Move
clamps off bushings.
Figure 5.214: Bushing Clamp
147695 360 Revision A
