MAINTENANCE AN D SERVICING
5. Rotate arm (A) clear of disc and slide arm inboard off
bushing and remove bushing halves (B). If required
remove the next tine or plastic finger, so that the arm
canslideoffthebushing.Referto:
• Removing Plastic Fingers, page 356
• Removing St ee l Tines, page 355

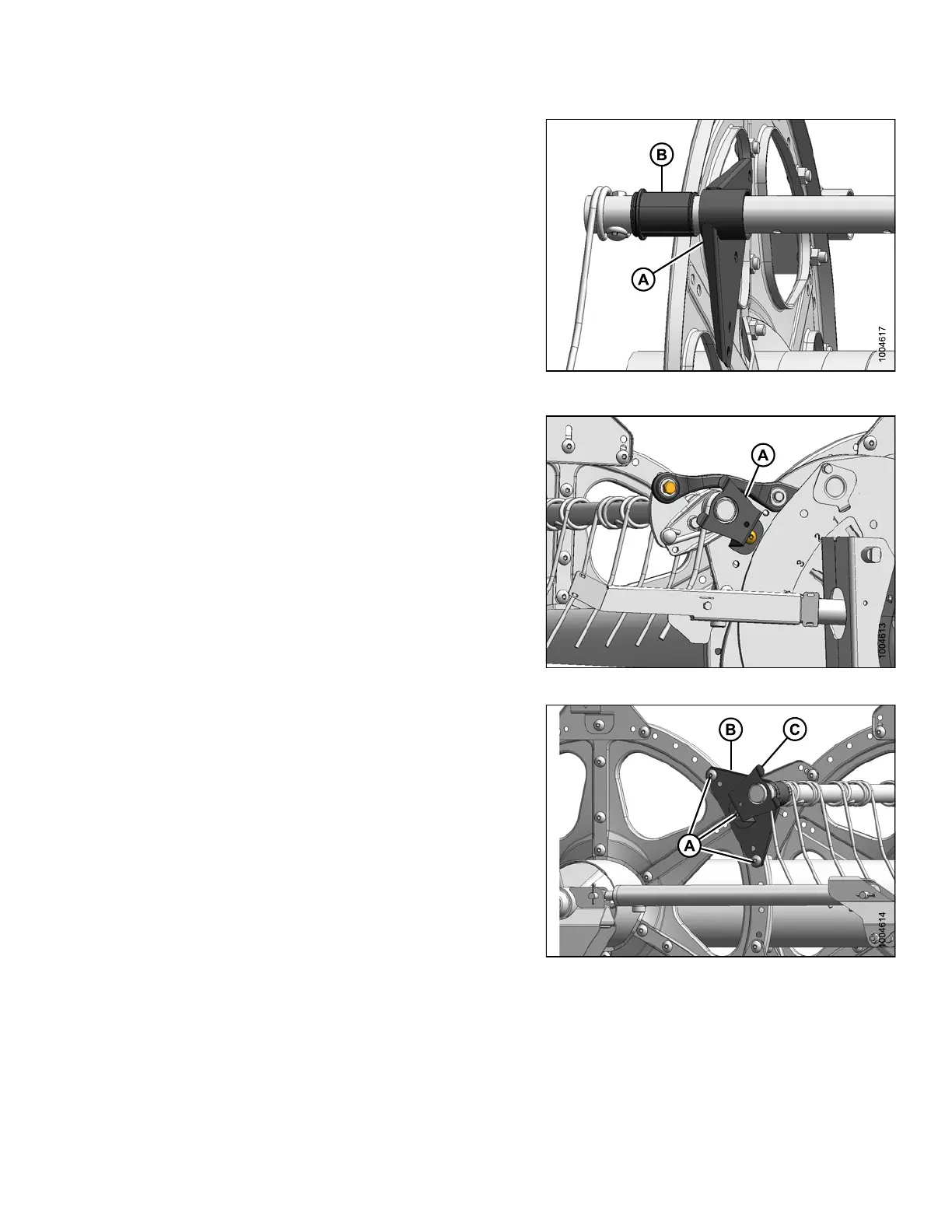

Figure 5.209: Bushing
Cam End Bushings
NOTE:
Removing cam end bushings requires that the tine
tube be moved through the disc arms to expose
the bushin g.
6. At the cam
end, remove endshields and endshield
support (
A) at applicable tine tube location on the
cam end.
Figure 5
.210: Cam End
7. At the tail end, remove reel endshields and endshield
support (C) at applicable tine tube location.
NOTE:
There are no endshields on the center discs.
8. At the tail and center discs, remove bolts (A) securing
arm (B) to disc.
Figure 5.211: Tail End
147695 359 Revision A
