MAINTENANCE AN D SERVICING
5. Move endshields (A) away from tine tube and rotate
support (B) towards reel to remove it.
6. Insert tabs of new support (B) into slots in endshields
and rotate into endshields. Ensure tabs engage
both endshields.
7. Secure support (B) to disc w ith bolt (C) and nut. Do
not tighten.
8. Secure endshields (A) to support (B) with bolt (C) and
nut. Do not tighten.
9. Reattach supports with bolts (C) and nuts.
10. Check clearance between tine tube and endshield
support, and adjust if necessary.
11. Torque nuts to 20 ft·lbf (27 N·m).

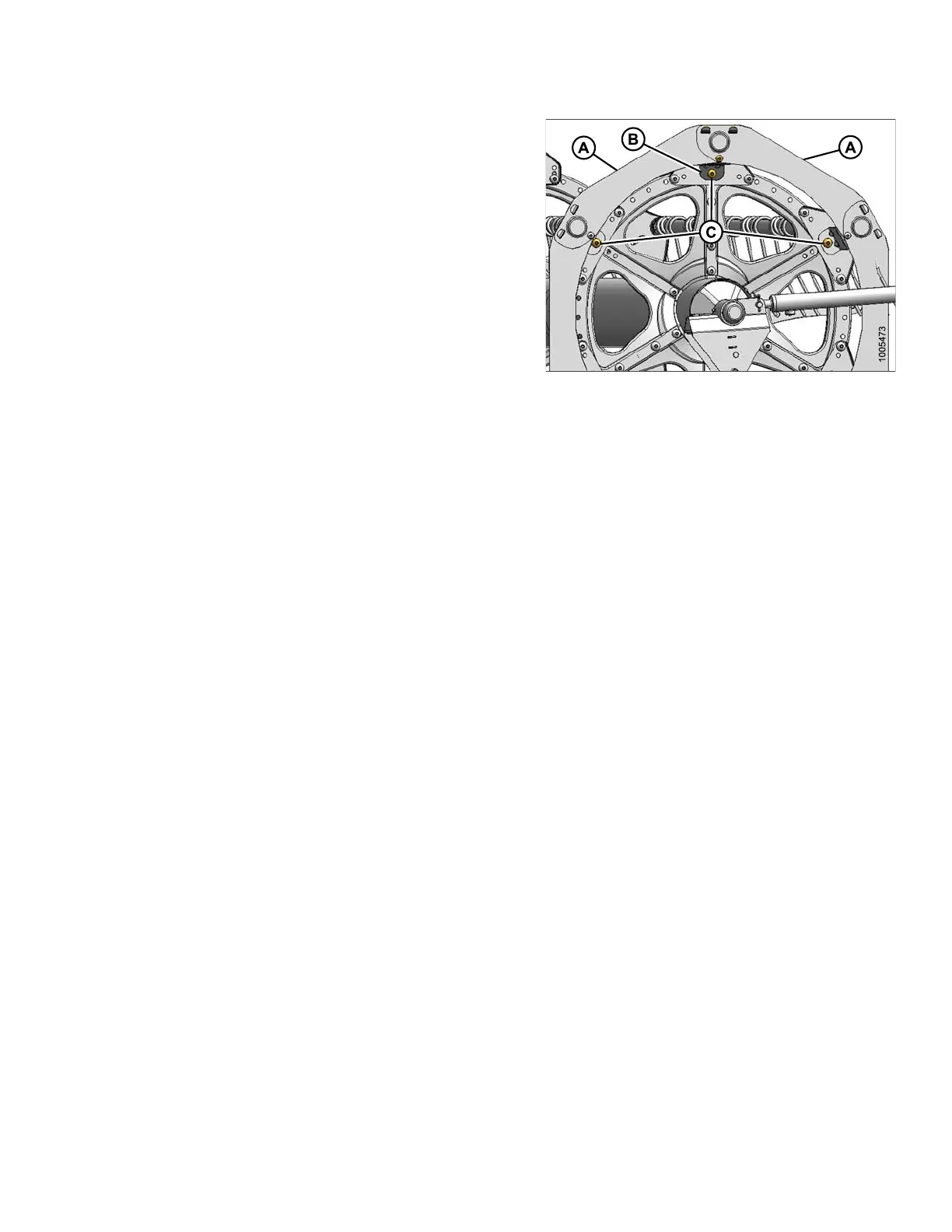

Figure 5.241: Endshield Supports
147695 371 Revision A
