HEADER ATTAC HMENT/D ETACH ME NT

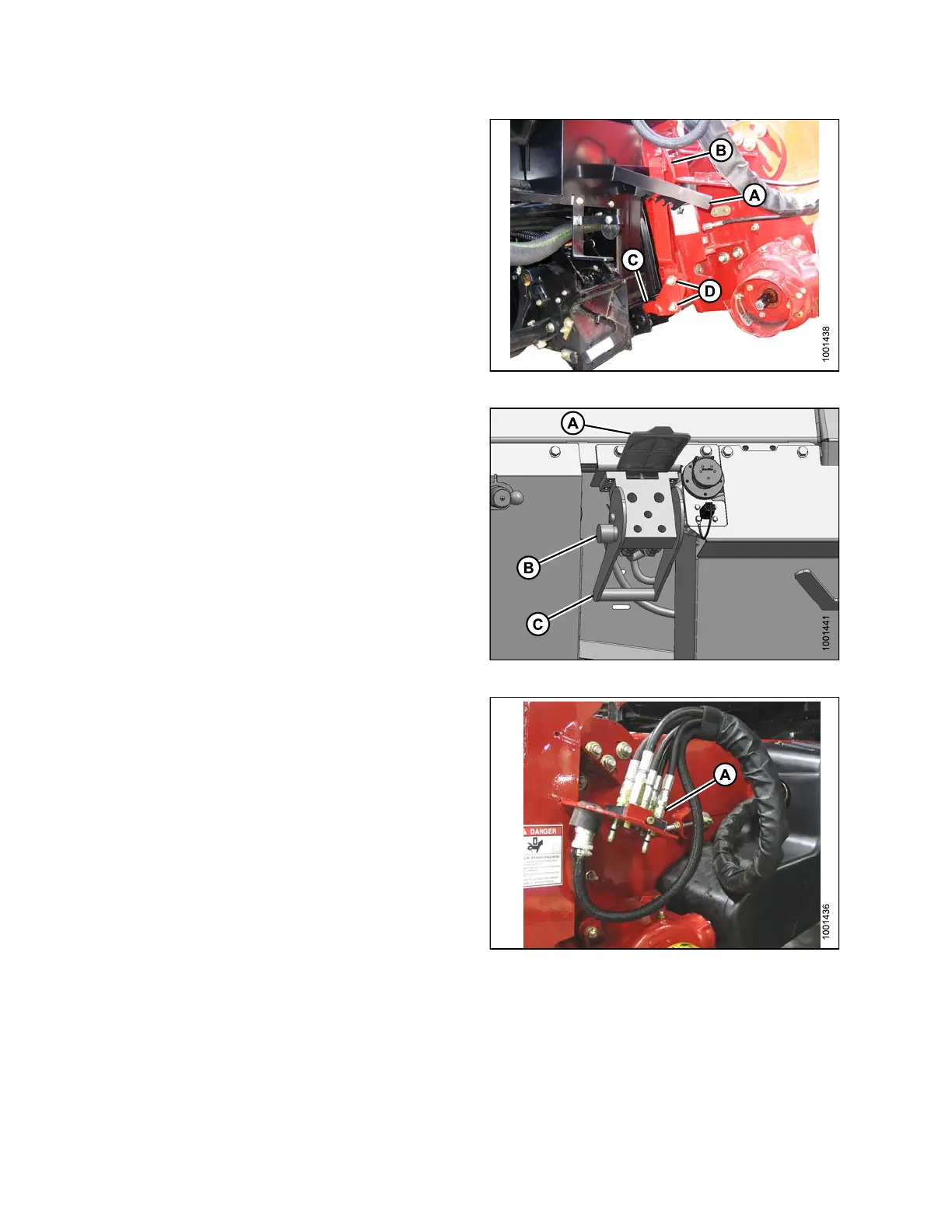

5. Lift lever (A) on adapter at left side of feeder house,
and push handle (B) on combine to engage locks (C)
on both sides of the feeder house.
6. Push down on lever (A) so that slot in lever engages
handle and locks handle in place.
7. If lock (C) does not fully engage pin on adapter when
lever (A) and handle (B) are engaged, loosen bolts (D),
and adjust lock as required. Retighten bolts.
Figure 4.3: Combine and Adapter
8. Open receptacle cover (A) on header.
9. Push in lock button (B), and pull handle (C) to full
open position.
10. Clean coupler face on header.
Figure 4.4: Adapter Receptacle
11. Remove coupler (A) from combine, and clean
mating surfaces.
Figure 4.5: Combine
147695 200 Revision A
