HEADER ATTA CHMEN T/DETACHMENT

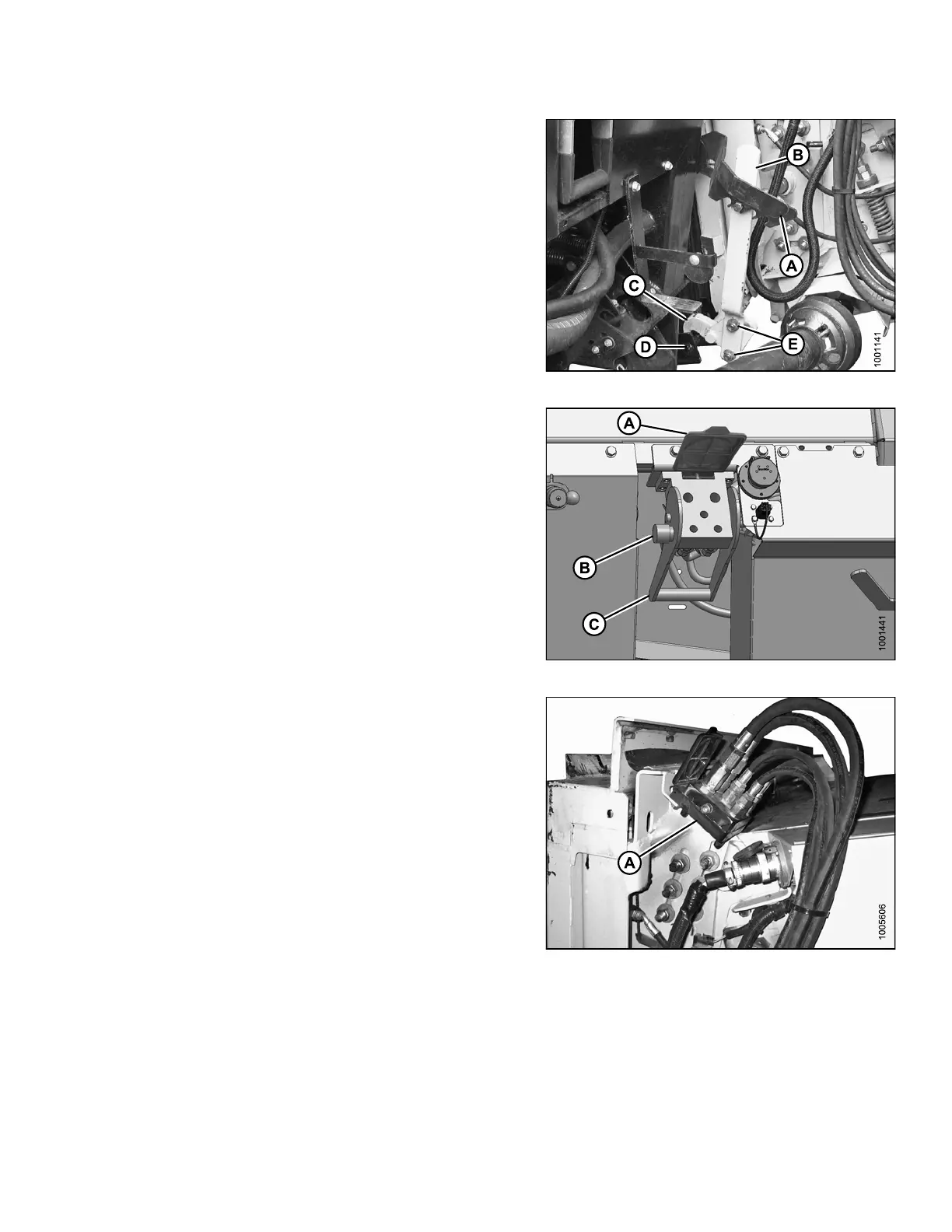

5. Lift lever (A) on adapter at left side of feeder house, and
push handle (B) on combine so that hooks (C) engage
pins (D) on both sides of the feeder house.
6. Push down on lever (A) so that slot in lever engages
handle and locks handle in place.
7. If hooks (C) do not fully engage pins (D) on adapter
when (A) and (B) are engaged, loosen bolts (E) and
adjust locks as required. Retighten bolts.
Figure 4.57: Feeder House Locks
8. Open receptacle cover (A) on adapter.
9. Push in lock button (B) and pull handle (C) to full
open position.
10. Clean coupler face on adapter.
Figure 4.58: Adapter Receptacle
11. Remove hydraulic quick coupler (A) from storage plate
on combine, and clean mating surface of coupler.
Figure 4.59: Combine Coupler
147695 223 Revision A
