HEADER ATTAC HMENT/D ETACH ME NT

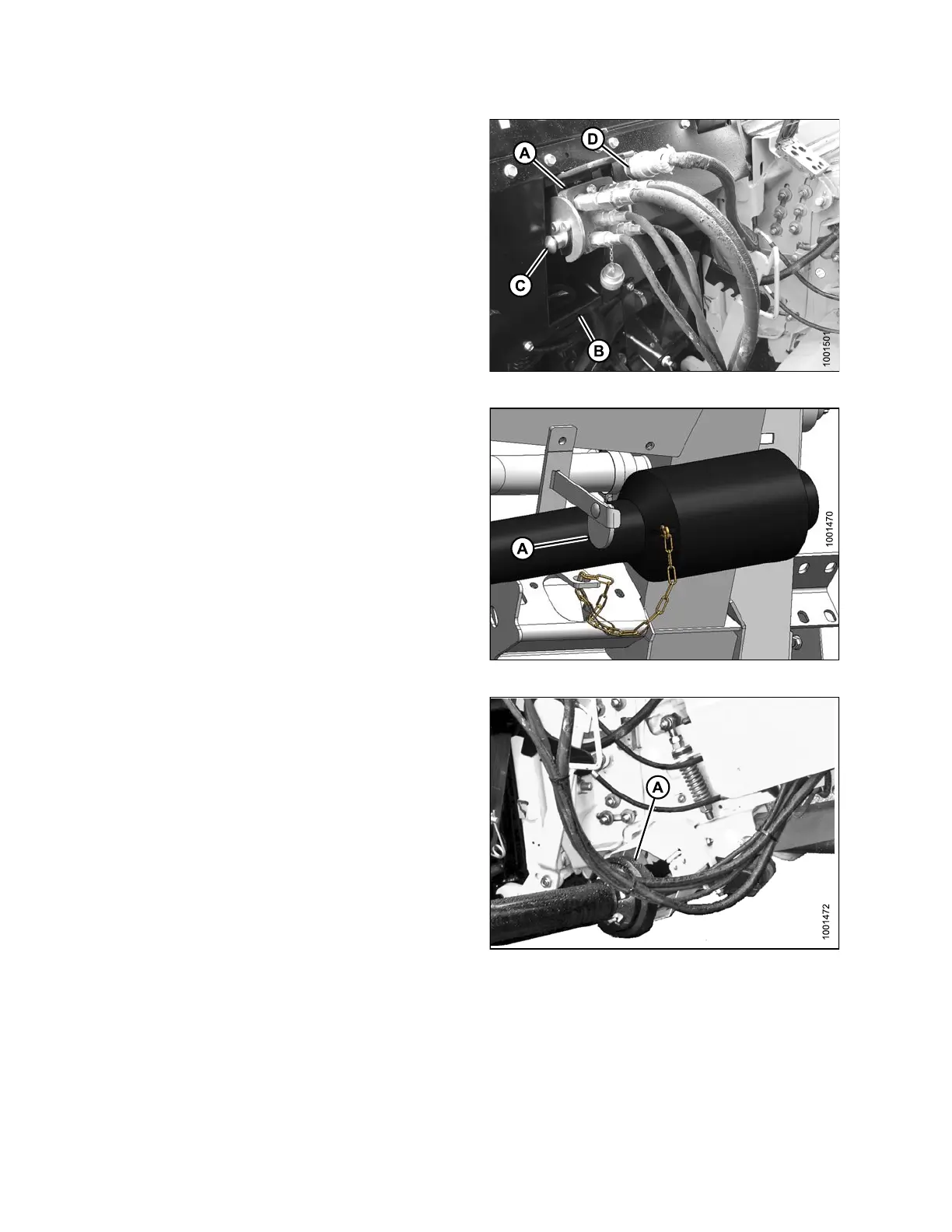

12. Position coupler (A) onto adapter receptacle, and push
handle (B) to engage pins into receptacle.
13. Push handle (B) to closed position until lock button (C)
snaps out.
14. Remove cover on adapter electrical receptacle.
15. Remove connector (D) from combine.
16. Align lugs on connector (D) with slots in adapter
receptacle, and push connector onto receptacle. Turn
collaronconnectortolockitinplace.
Figure 4.60: Connections
17. Rotate disc (A) on adapter driveline storage hook, and
remove driveline from hook.
Figure 4.61: Driveline
18. Pull back collar on end of driveline, and push onto
combine output shaft (A) u ntil collar locks.
Figure 4.62: Driveline and Output Shaft
147695
2
24
Revision A
