OPERATION

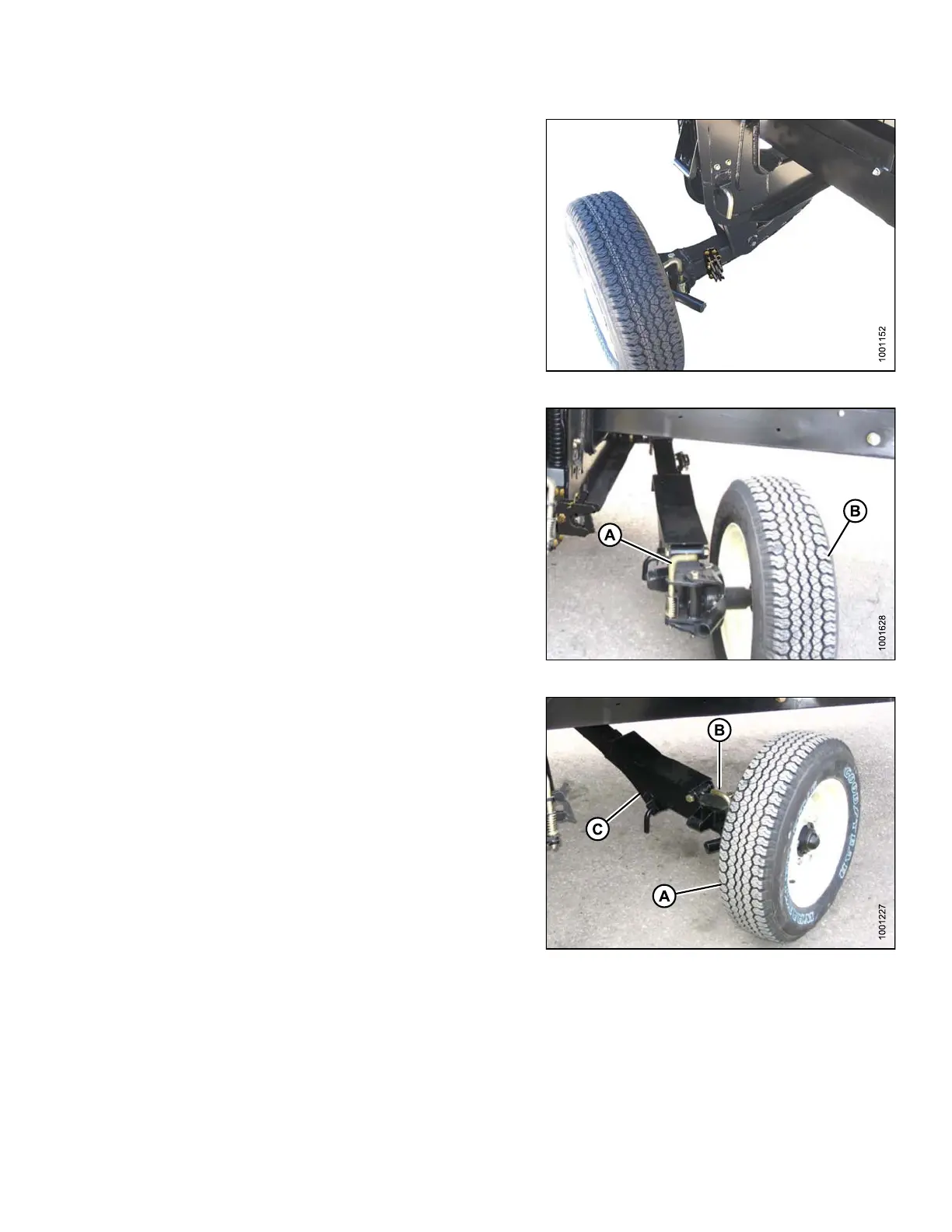

8. Left wheel is now in Transport position as shown.
Figure 3.288: Transport P osition
9. Pull pin (A), and swivel wheel (B) clockwise 90 .
Figure 3.289: Right Rear Wheel
10. Lock wheel (A) with pin (B). Move the right axle (C) to
front of header.
Figure 3.290: Right Rear Wheel
147695 191 Revision A
