MacDon FFT FlexDraper FD75 - Page 205

OPERATION
7. Remove pin (A) from storage at top of leg (B).
8. Move and swivel wheels clockwise so that
connector (C) is turned towards the front end of
the header.
9. Insertpin(A)andturntolock.
10. Lower header so that left wheels are just touching
the ground.

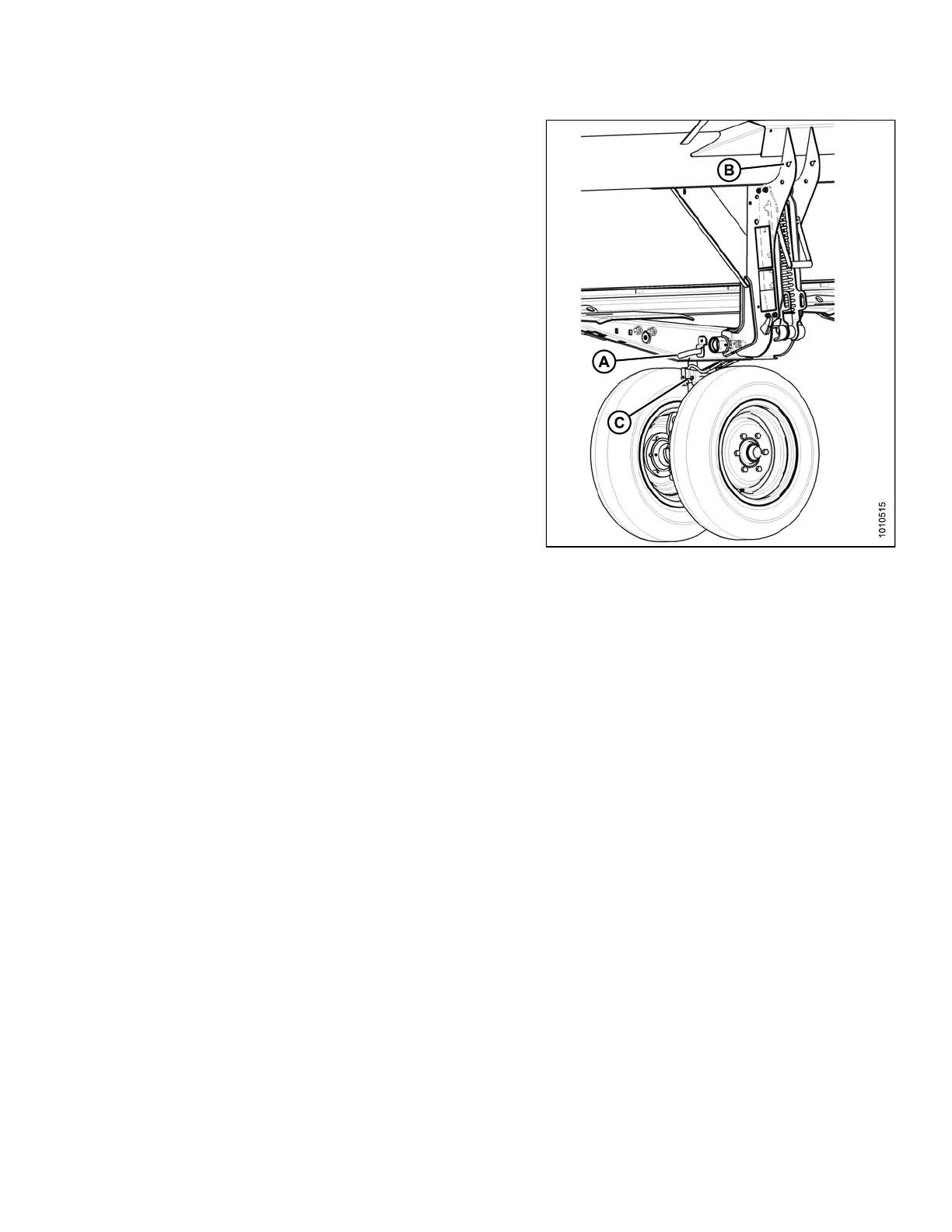

Figure 3.
285: Wheels
147695 189 Revision A
