MacDon FFT FlexDraper FD75 - Header Setup and Settings

PRODUCT OVERVIEW

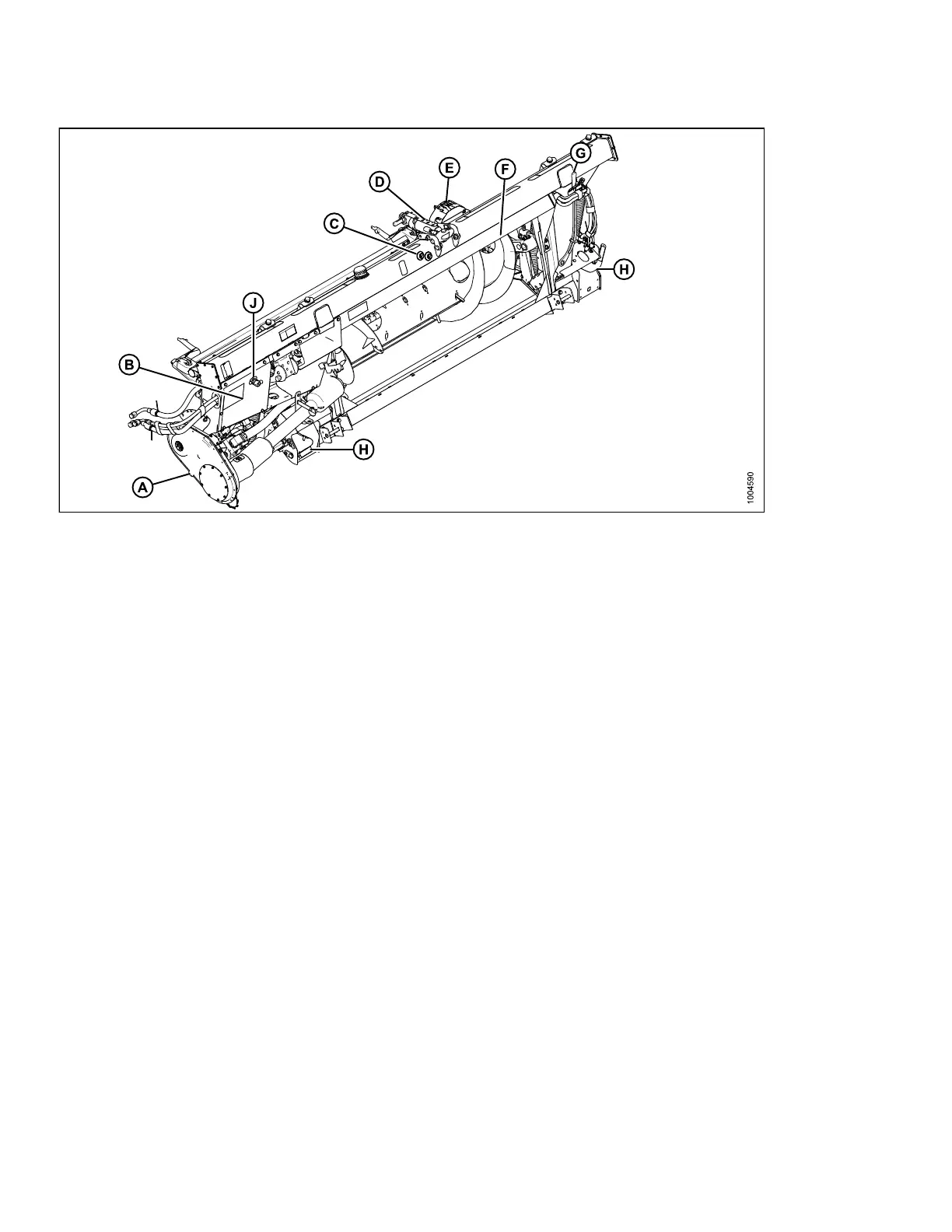

Figure 2.4: Combine Side of CA25 Combine Adapter
A - Adapter Gearbox B - Hydraulic Compartment Cover C - Reservoir Oil Level Sight Glass
D - Center-Link E - Header Heig ht Control Indicator
F - Transition Frame
G-TorqueWrench
H - Header
Float Lock
J - Side D raper Speed Co ntrol
147695 28 Revision A
