OPERATION
8. Briefly press button (A) or button (B) in order to select
the set point.
9. Repeat Step 7., page 152 for the set point.

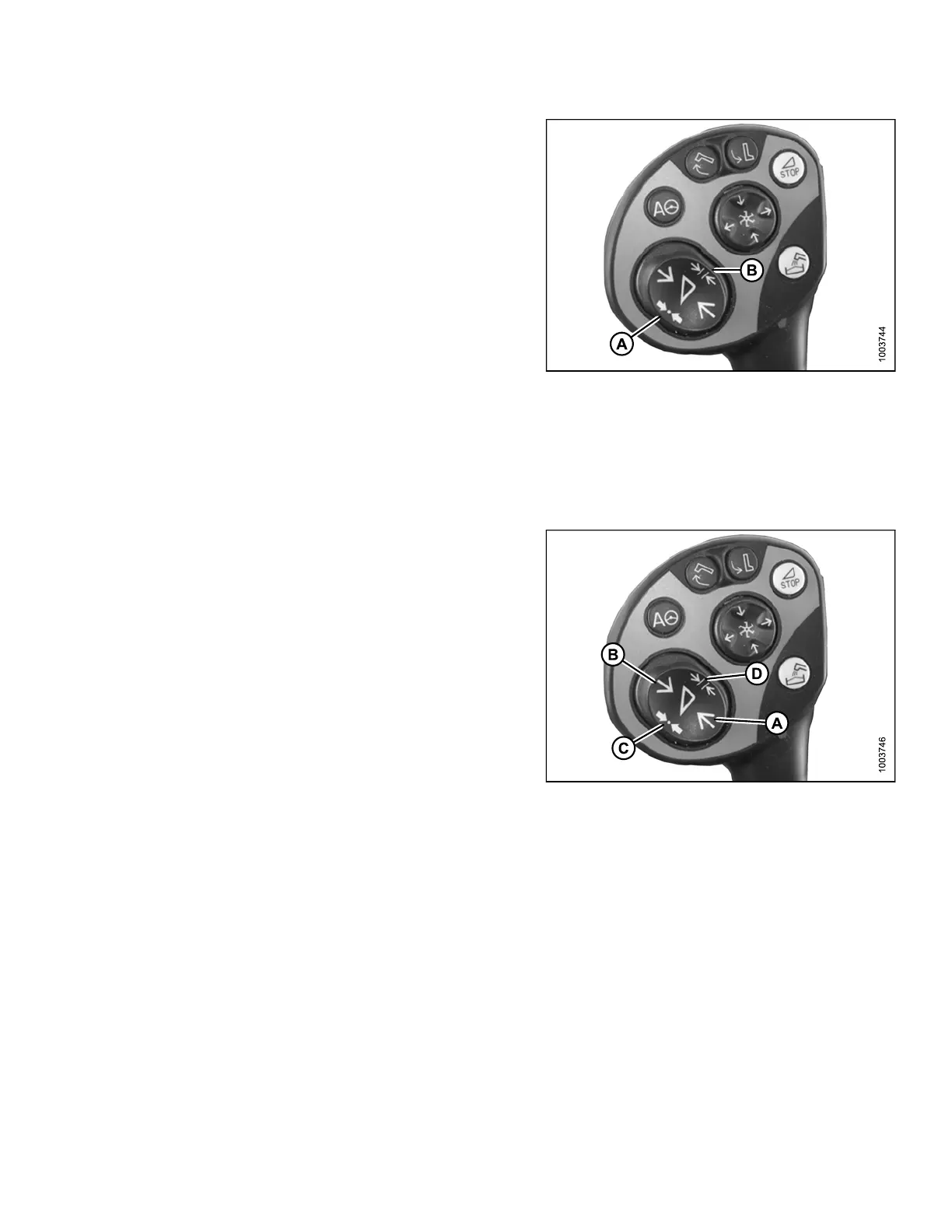

Figure 3.221: Joystick Buttons
Setting C utting Height Manually (Lexion 500 Series)
NOTE:
Changes ma
y have been made to the c ombine controls or display since this document was published. Refer to
the combin
e operator ’s manual for updates.
1. Use button (A) to raise the header or button (B) to lower
the header to the desired cutting height.
2. Press and hold button (C) for three seconds to store
the cutting height into the CEBIS (an alarm will sound
when the new setting has been stored).
3. Program a seco nd set po int , if d e sired, by using
button (A) to raise the header or button (B) to lower
the header to the desired cutting height, and briefly
press button (C) to store the second set point into the
CEBIS (an alarm will sound when the new setting has
been stored).
NOTE:
For above the ground cutting, repeat Step 1.,
page 153, and use button (D) instead of
button (C) while repeating Step 2., page 153.
Figure 3.222: Joystick Buttons
Setting the Sensitivity of the Auto Header Height Control (Lexion 500 Series)
Setting the sensitivity of the A uto Header Heigh t Control (AHHC) system impacts the r eaction sp eed of the
AHHC on the header.
NOTE:
The upper a
nd lower limits of the header must be programmed into the CEBIS before a dju s t ing the sensitivity of
the AHHC sy
stem. The setting can be adjusted from 0–100%. When sensitivity is adjusted to 0%, the signals
from the se
nsing bands have no effect on the automatic cutting height adjustment. When sensitivity is adjusted to
100%, the s
ignals from the sensing bands have maximum effect on the automatic cutting height adjustment.
The recomm
ended starting point is 50%.
147695 153 Revision A
